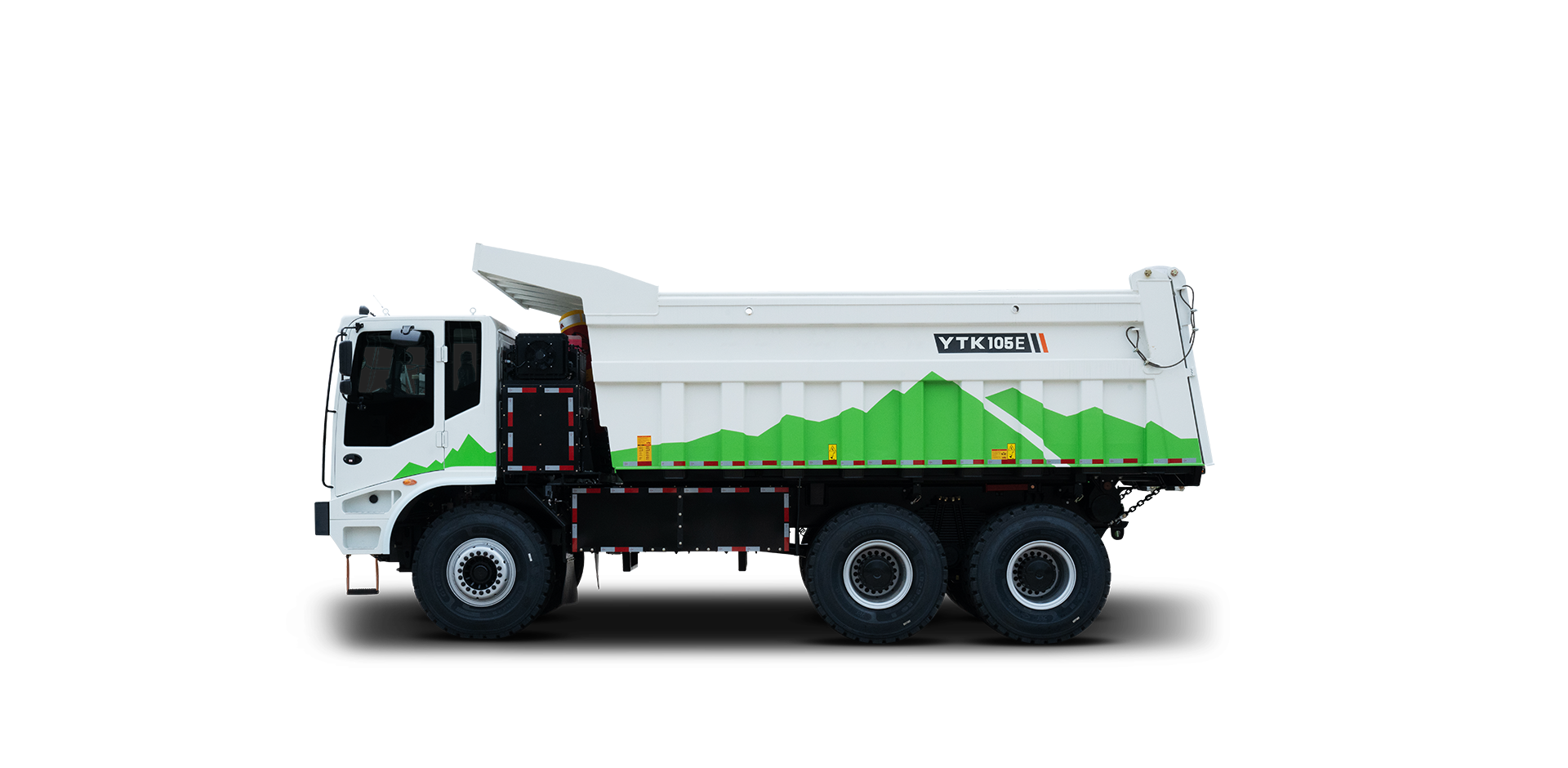

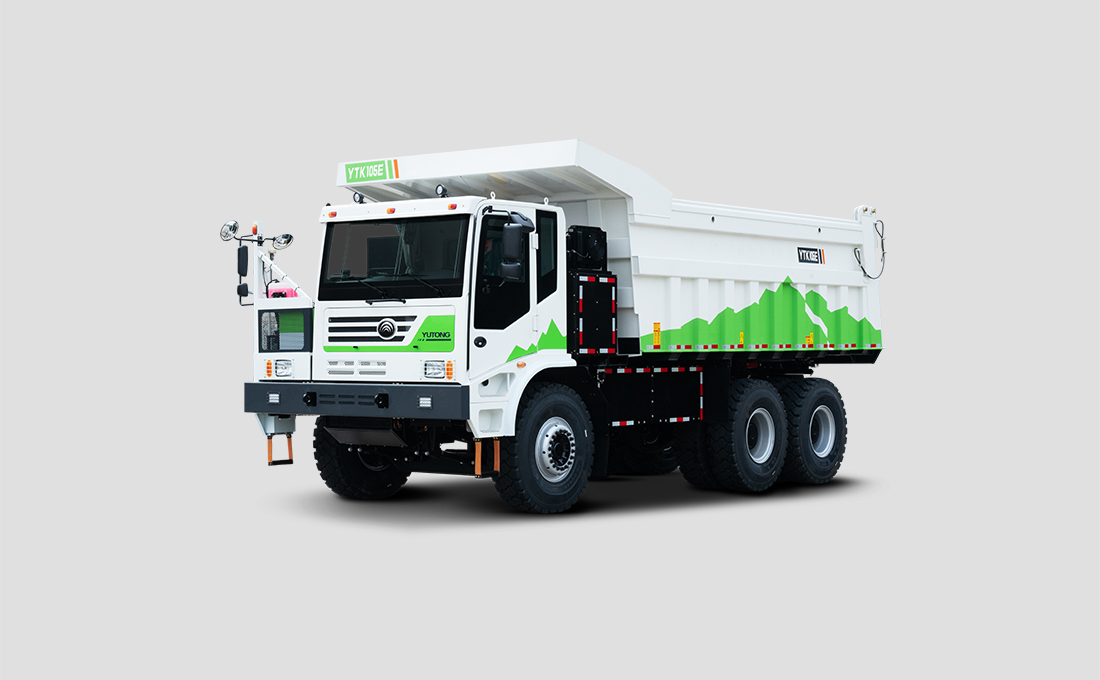

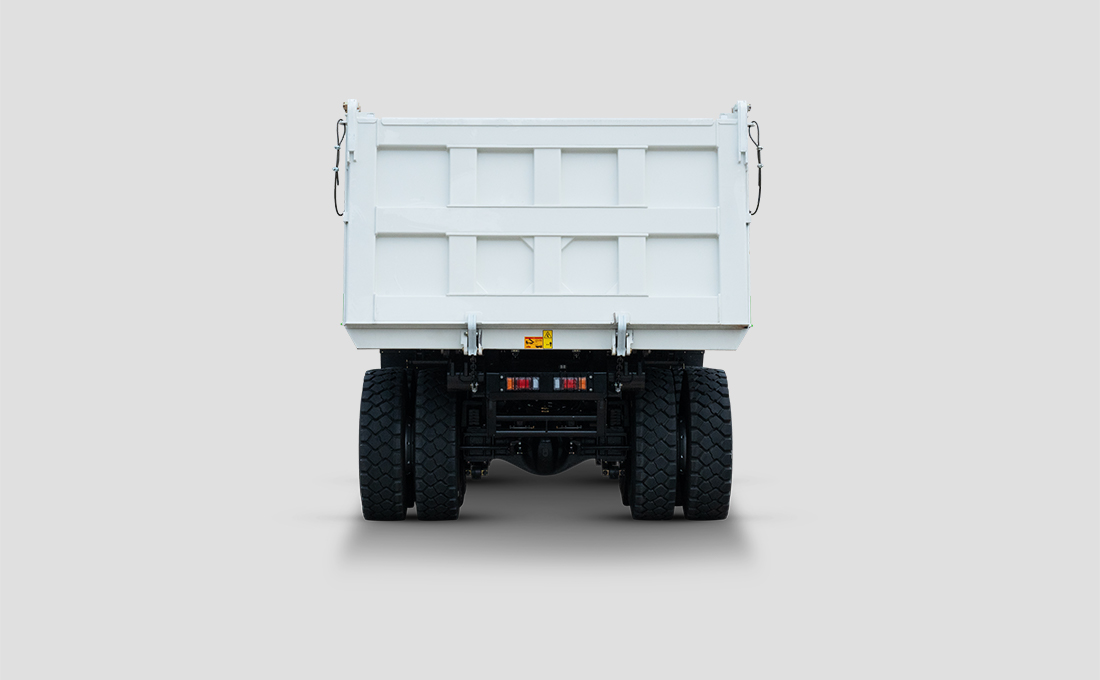

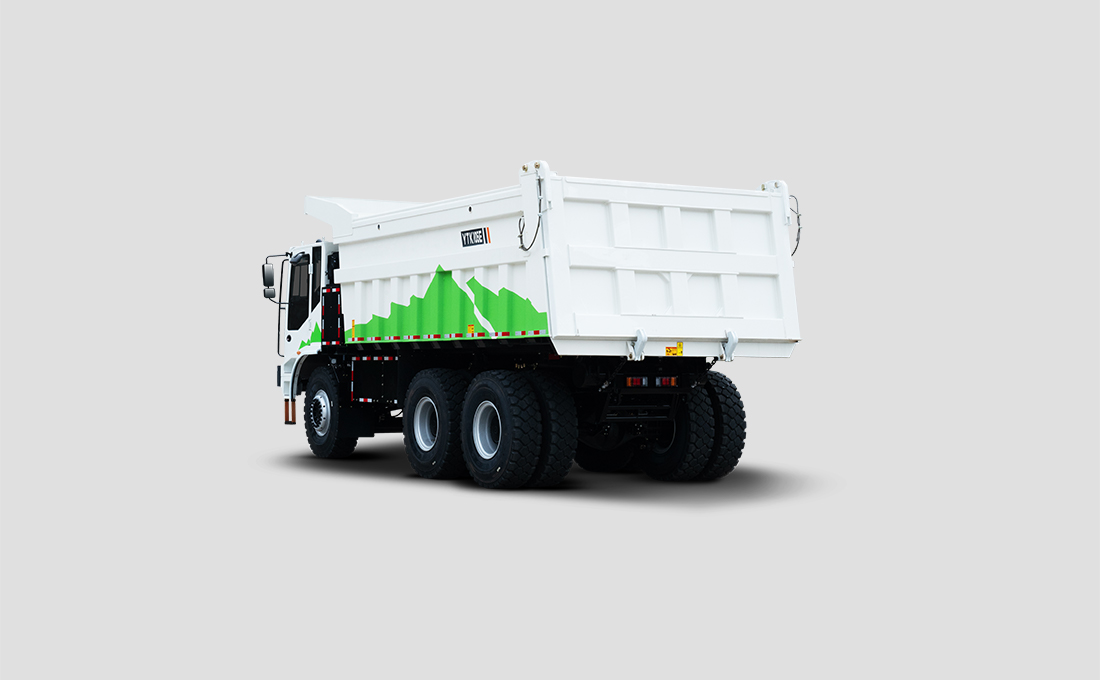

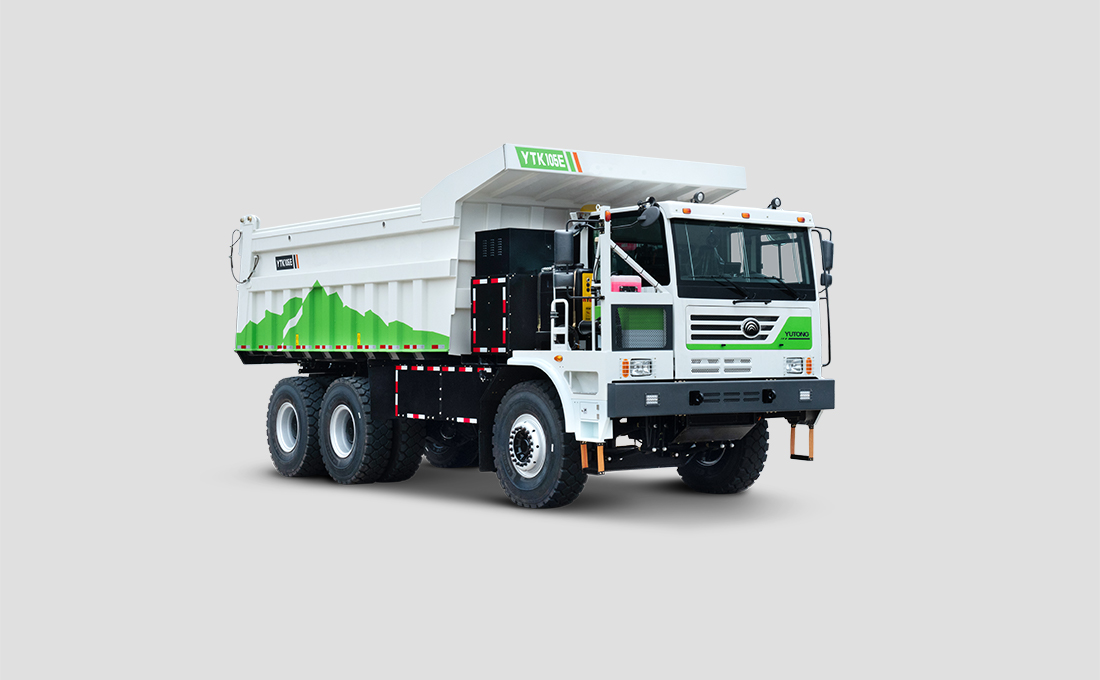

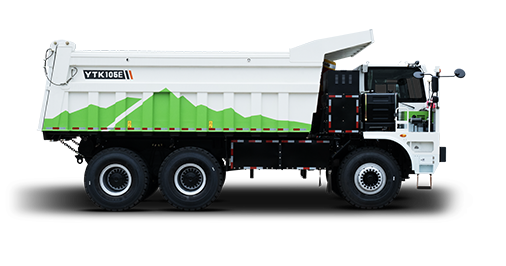

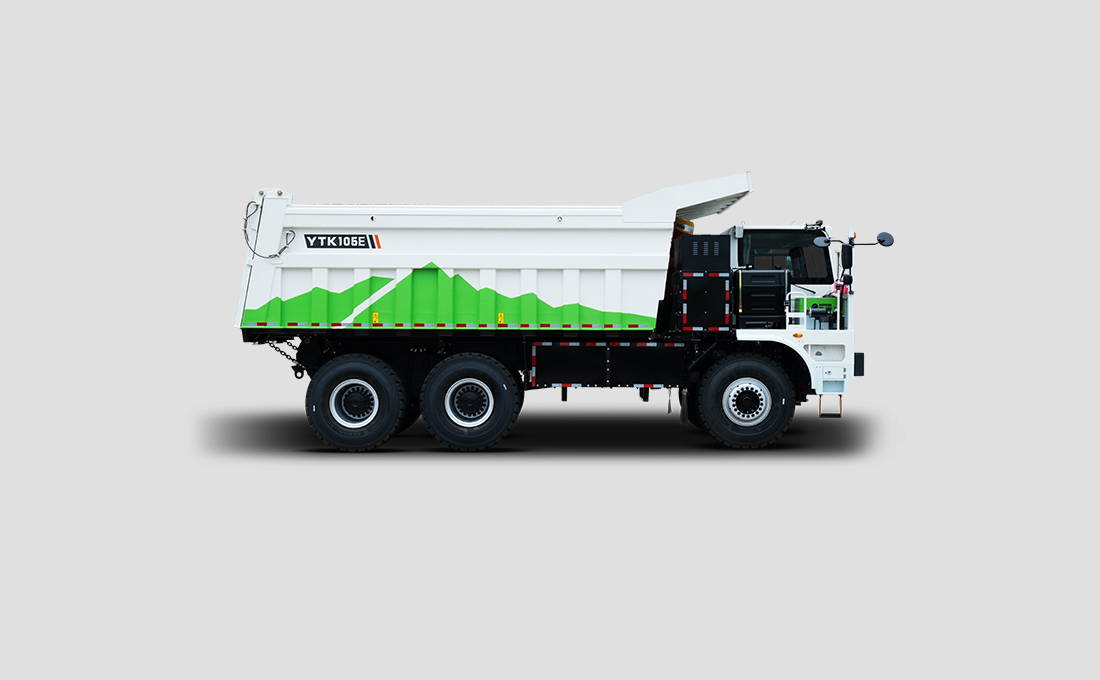

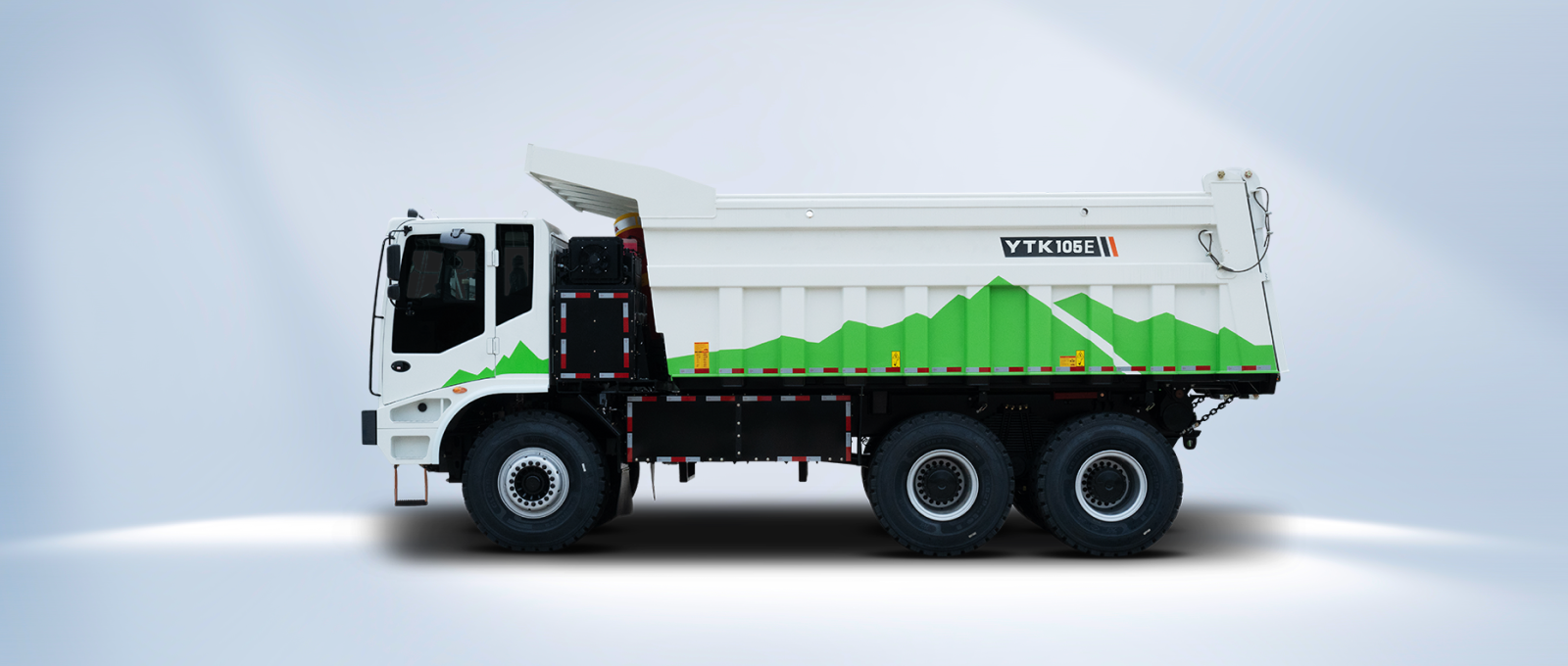

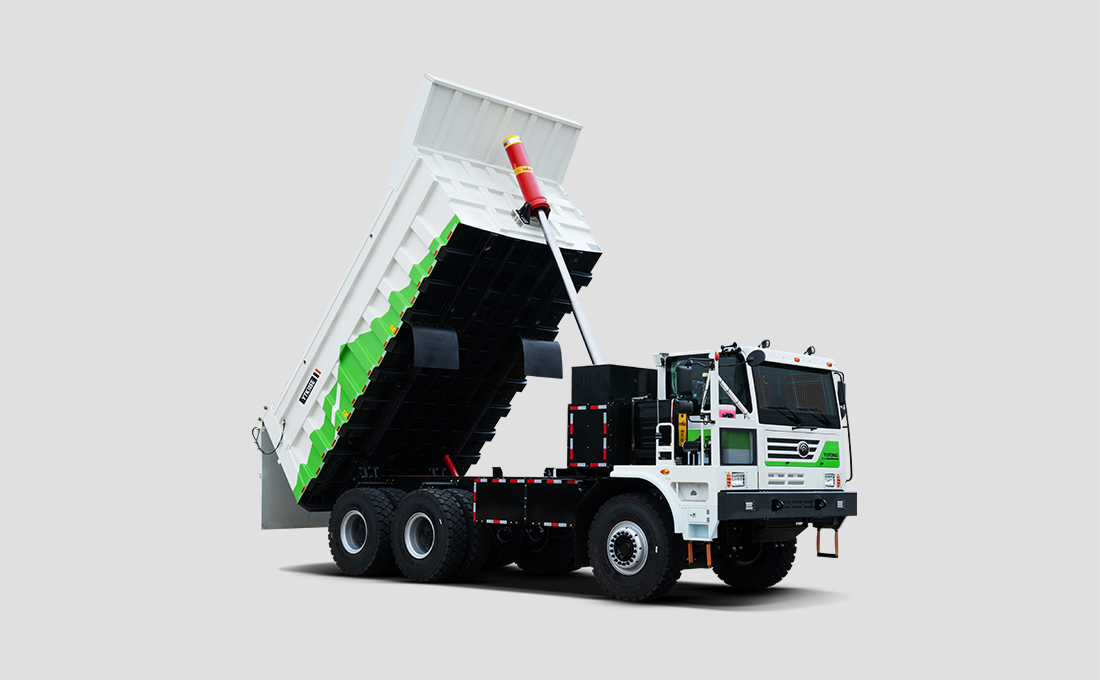

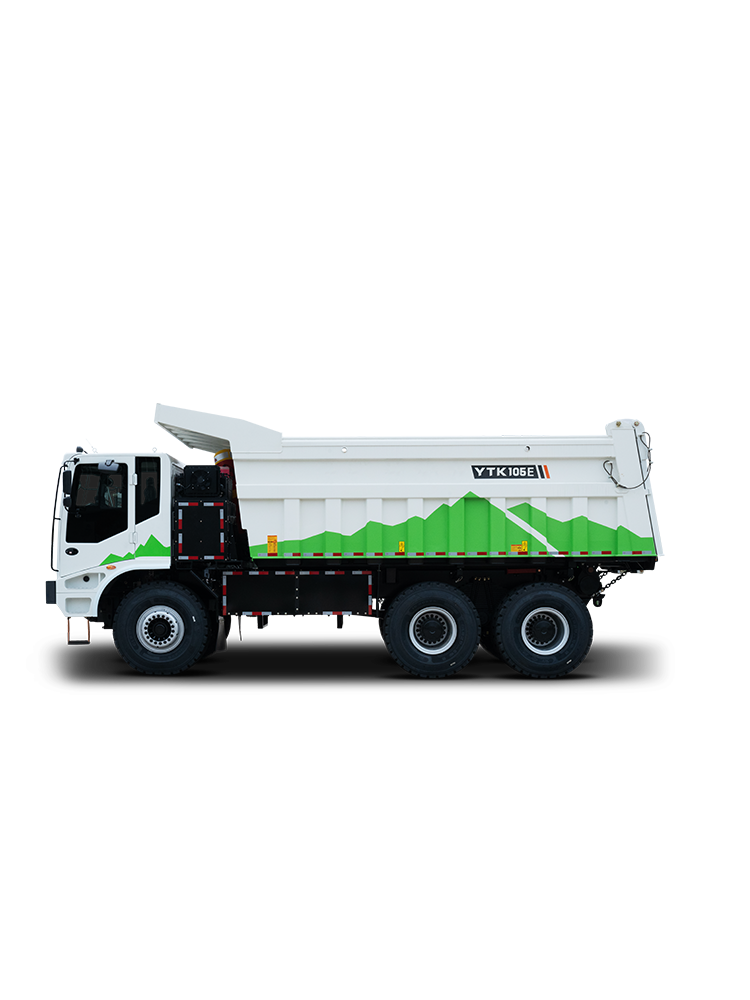

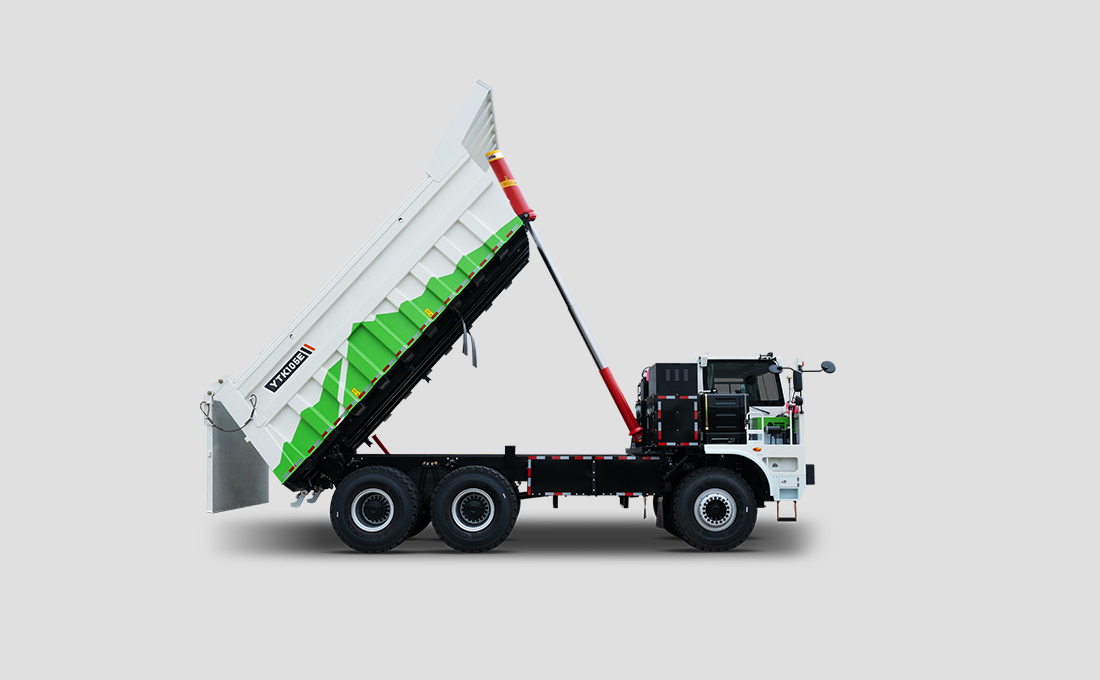

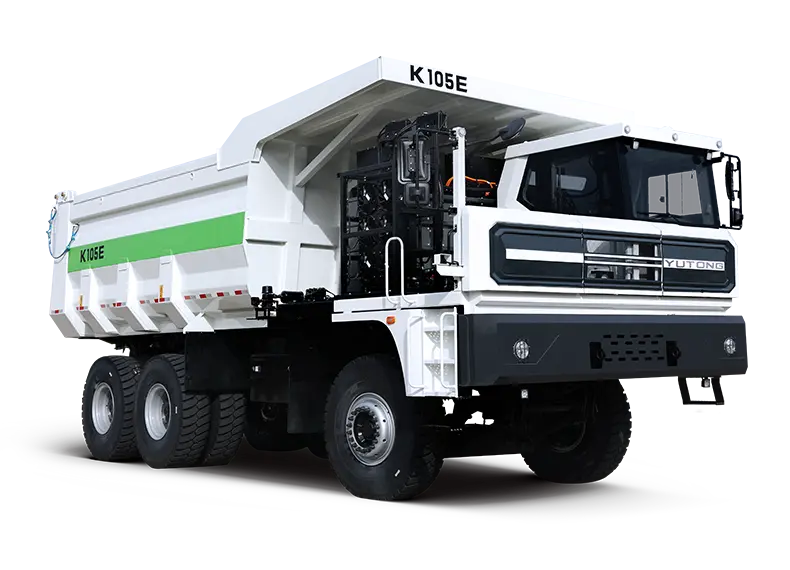

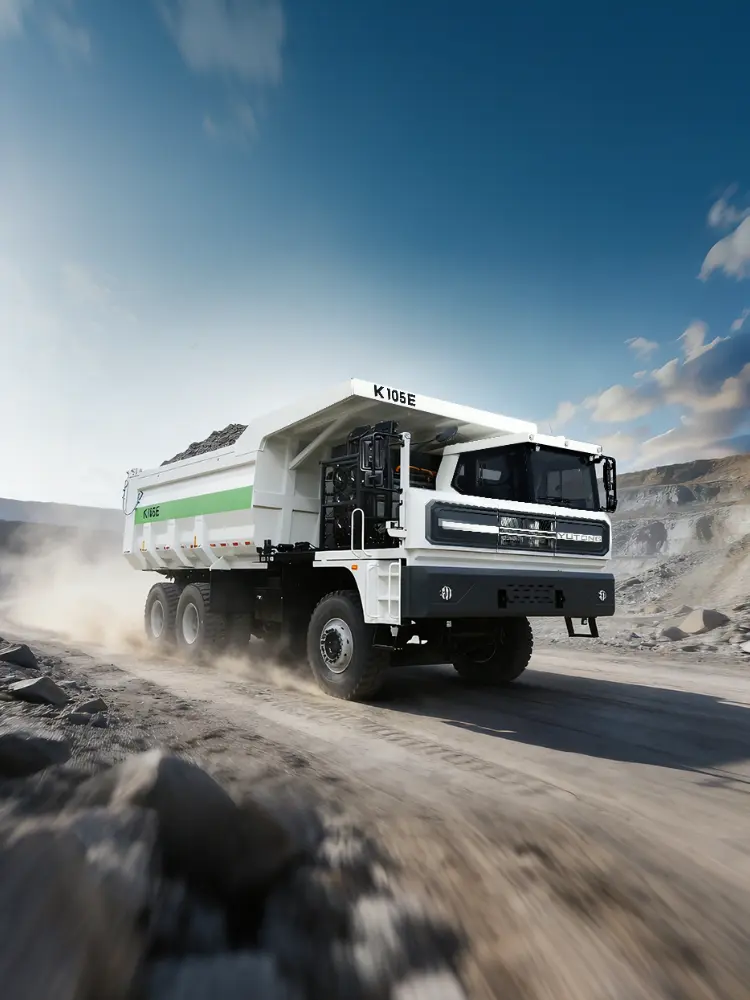

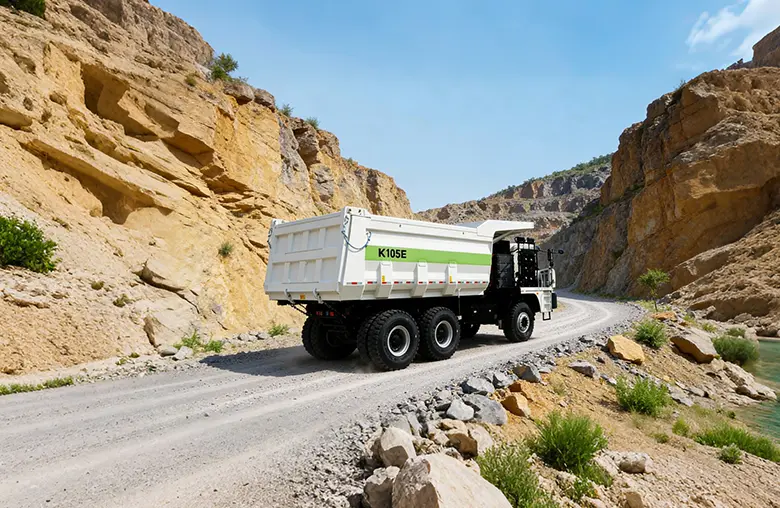

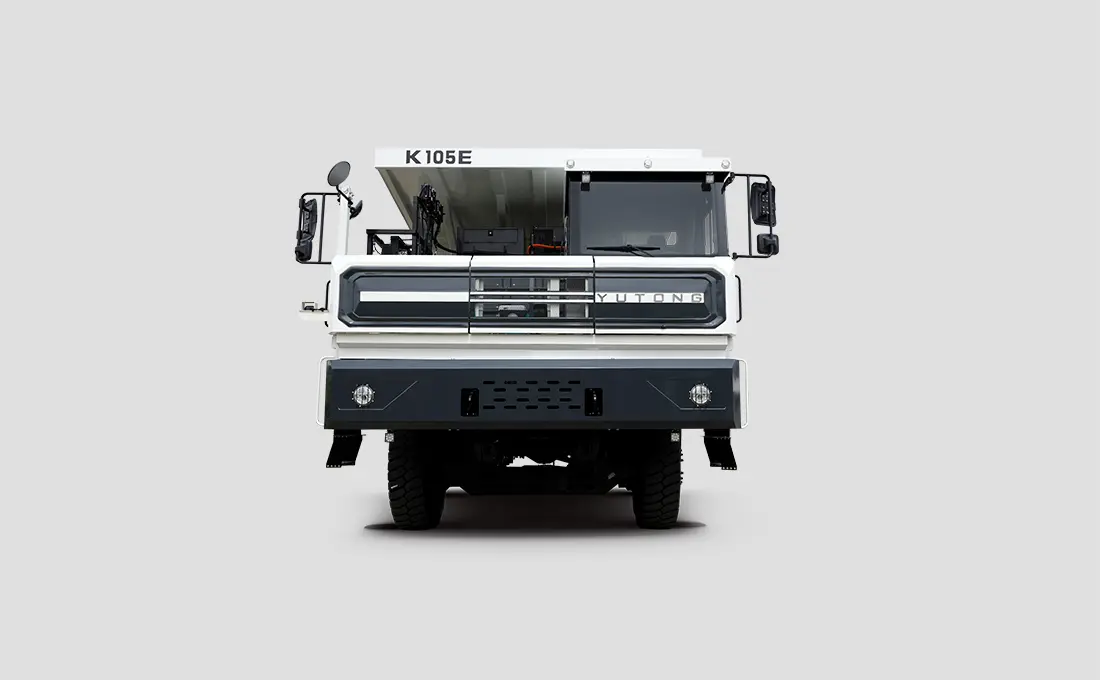

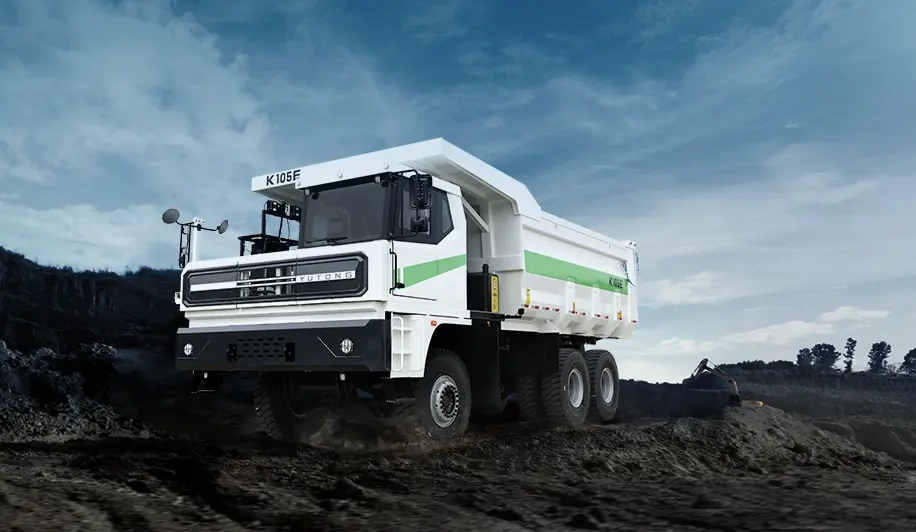

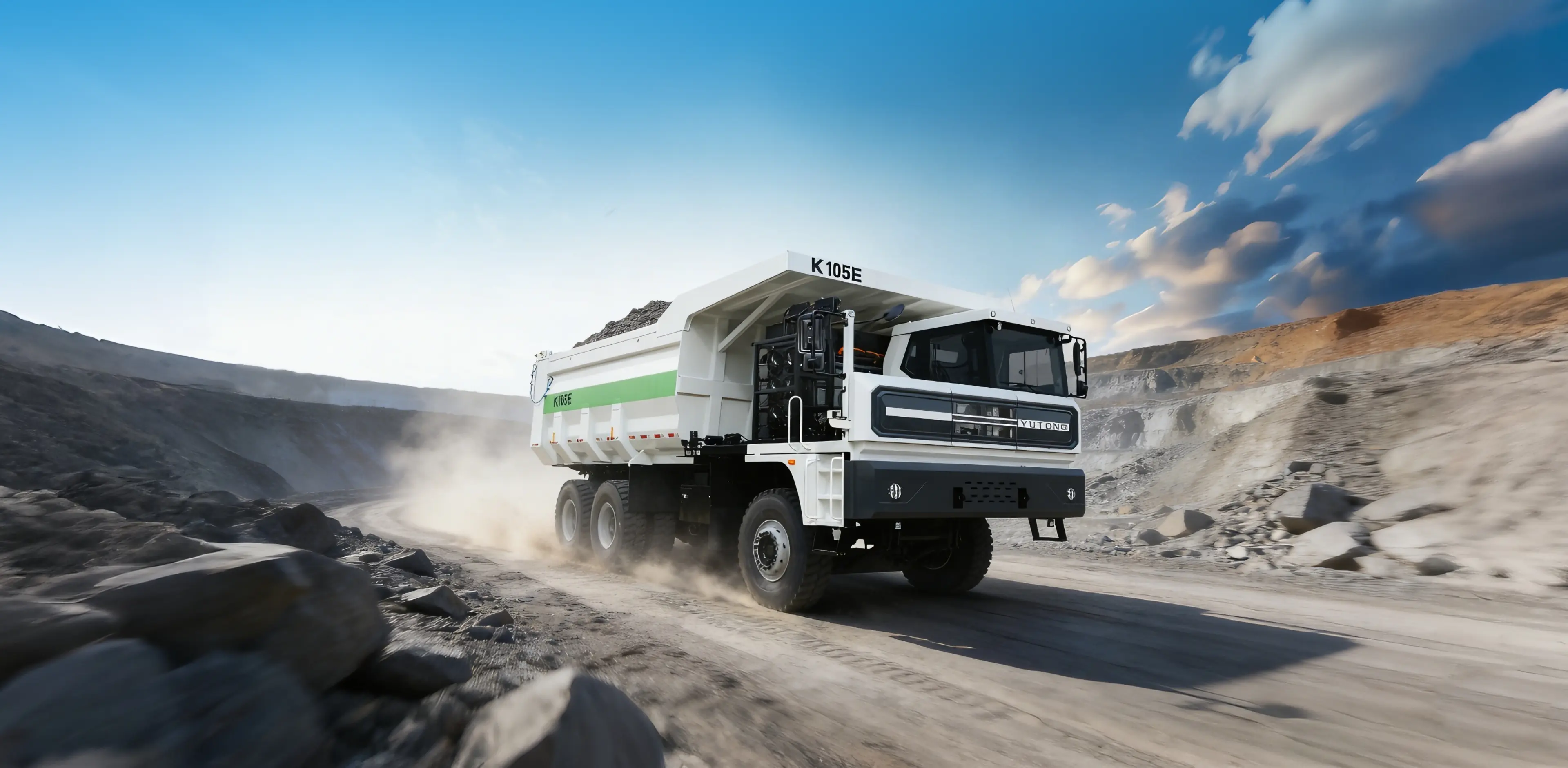

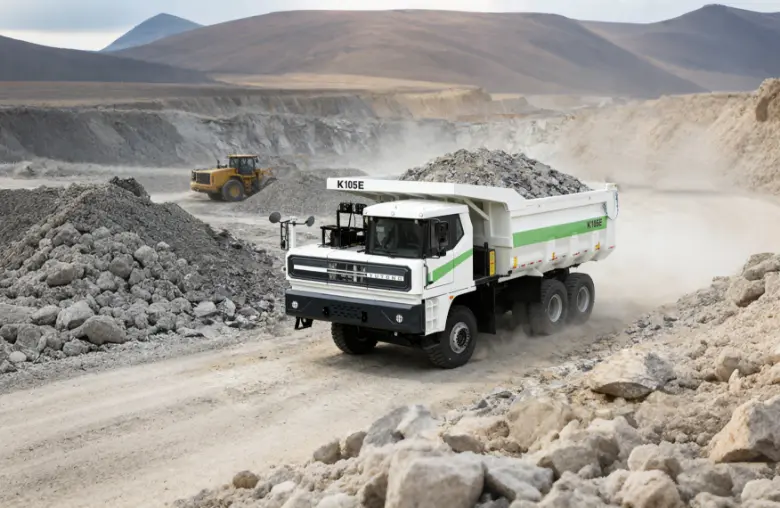

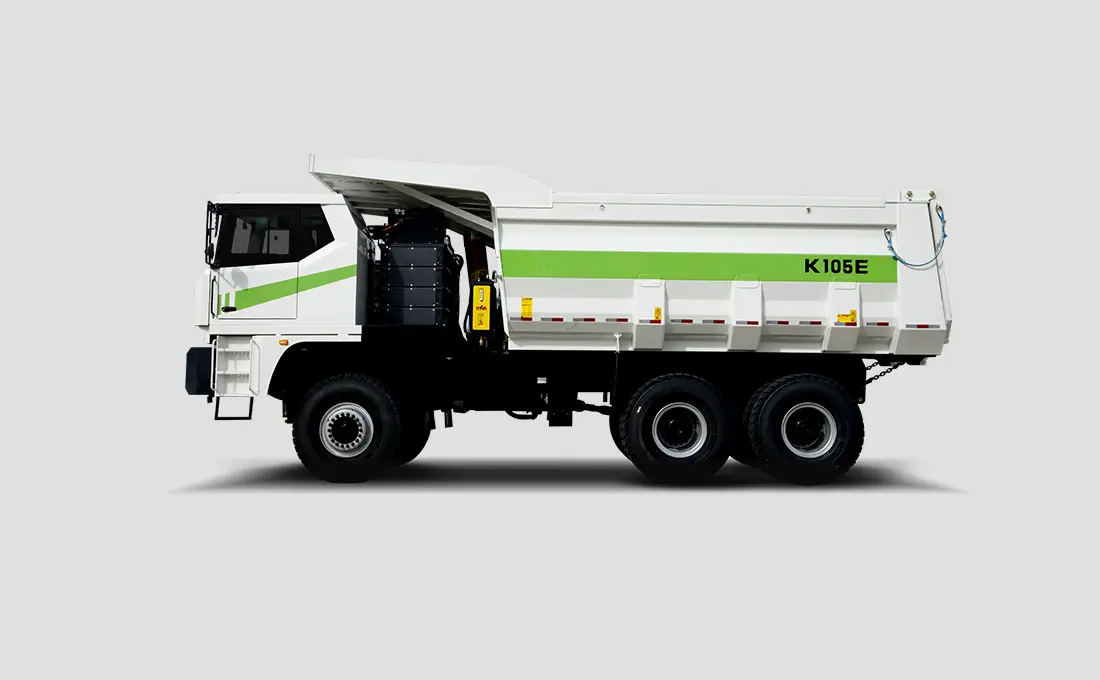

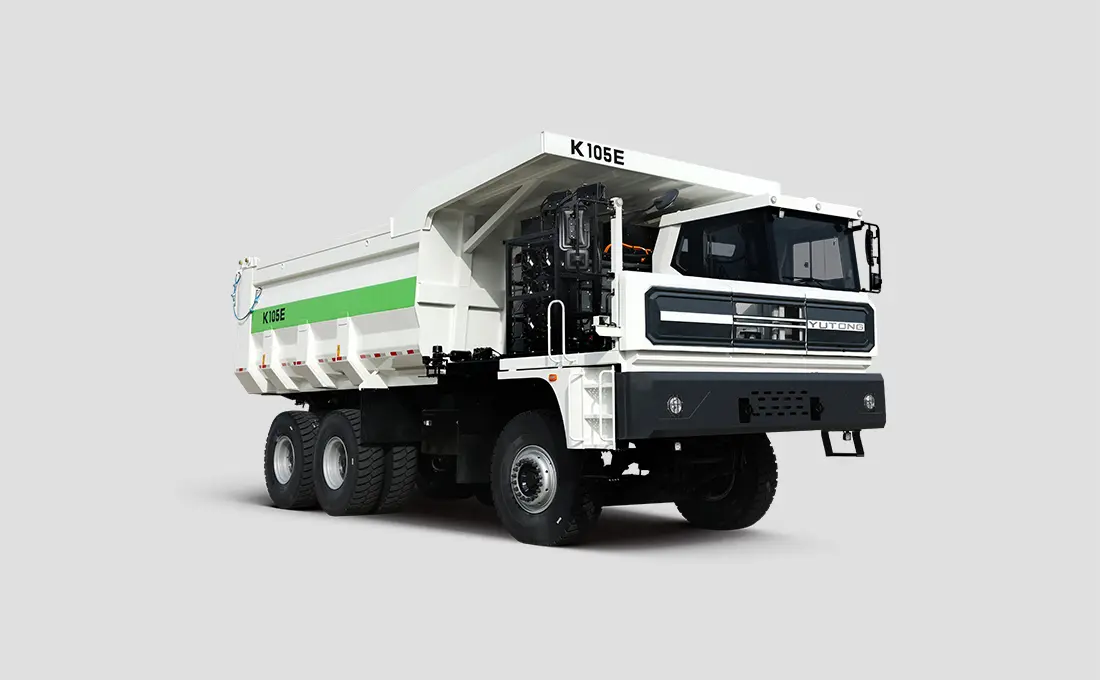

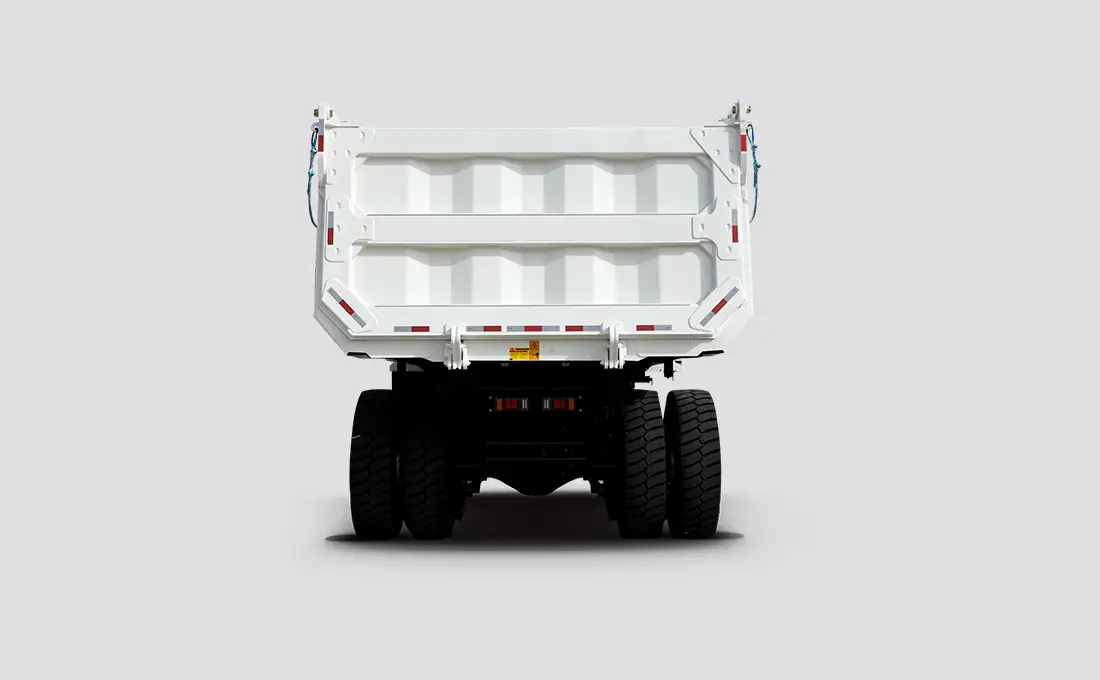

YTK105E
Why Choose Yutong New Energy Trucks?
-
01Safer driving
Yutong's "YEA" 3S safety technology standard, specially designed shock-resistant battery pack for mining trucks, autonomous monitoring, ensuring a safe journey.
-
02More reliable
Rigorous testing under extreme conditions exceeding 15 million kilometers. key assemblies such as rigid chassis with a lifespan of over 10 years.
-
03More efficient
Stable HV system (battery, motor and electric control). vehicle uptime > 95%. independently developed dual motors with efficiency > 97%. charging time reduced by 20% compared to industry standards.
-
04More economical
Energy consumption per ton-kilometer decreases by 92% compared to fuel trucks of the same tonnage. enhanced energy recovery with a recovery rate > 75%. intelligent thermal management reducing energy consumption by 20% compared to industry standards. under the loading and downhill (7%) conditions, the vehicle needs to be charged once every 3 days. a "perpetual motion machine" can be achieved under loading and downhill (9%) conditions.

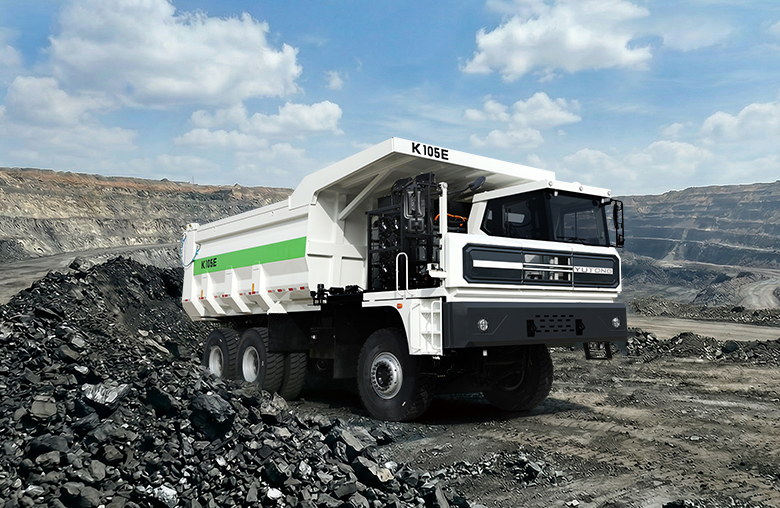

Applicable Scenarios
-

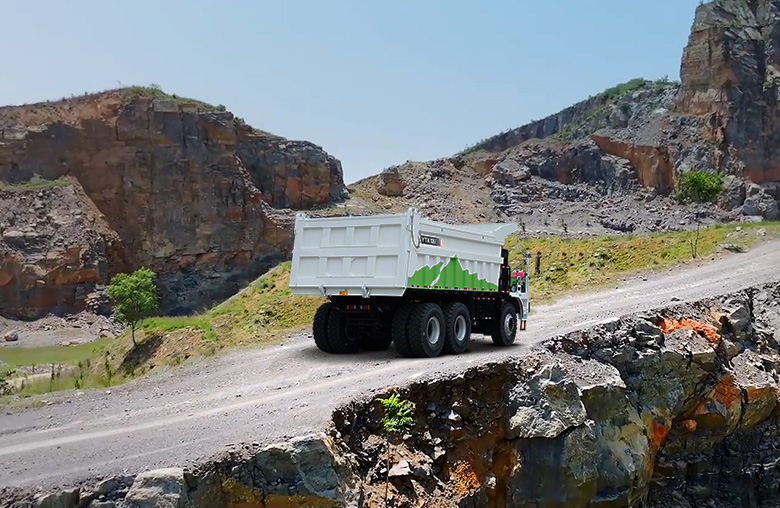

Uphill under load in mining areas -
Downhill under load in mining areas
Reliable battery, motor and electric control
-
30+
mining area conditions
-
6
major key focus areas
-
95%
uptime
-
200,000 tons
of ore transported annually
Specialized standards for mining vehicle battery packs have been established, and through multiple cycles of testing, validation, and refinement, a robust battery pack tailored for mining environments has been developed. This ensures it satisfies the stringent operational conditions and longevity expectations required in mining areas.

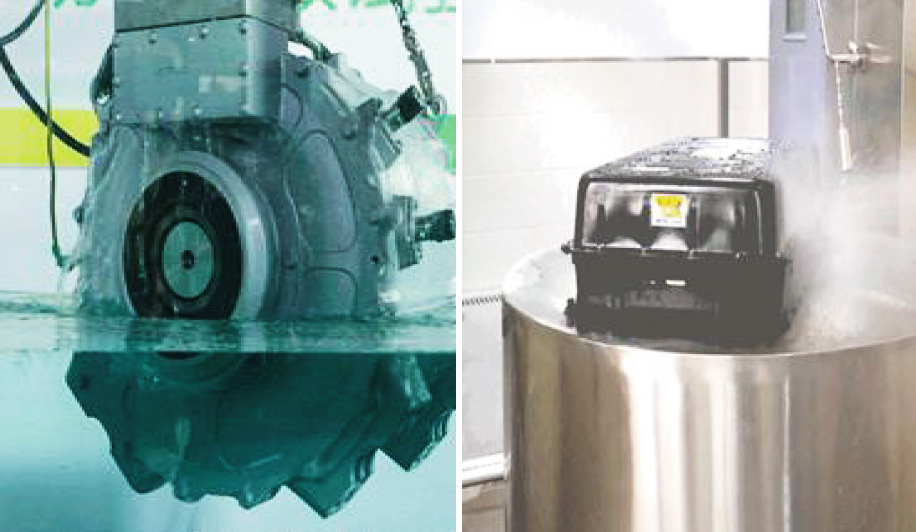

The protection system, rated IP68 and IP6K9K, effectively increases the motors' and batteries' resistance to extreme rainy conditions. This enhancement in reliability and stability ensures that the vehicles meet the required uptime (which are now over 95%), leading to increased profits from mining transport operations.
The battery liquid cooling system effectively regulates the battery operating temperature, enhancing overall vehicle reliability, ensuring stable operation by customer, shortening charging time, extending battery lifespan, and saving customers' operating costs.
The motor features unique mud protection for shaft extension, as well as an anti-condensation structure, allowing it to function reliably in hot and humid conditions.
Due to fewer high-voltage connection points, potential failure spots are effectively reduced.
The electromagnetic field strength significantly falls beneath the threshold mandated by the Chinese national standard GB 8702-2014 Controlling Limits for Electromagnetic Environment across static, driving, and charging modes. This prevents mutual interference, guarantees precise data transfer, and ensures reliable connectivity.

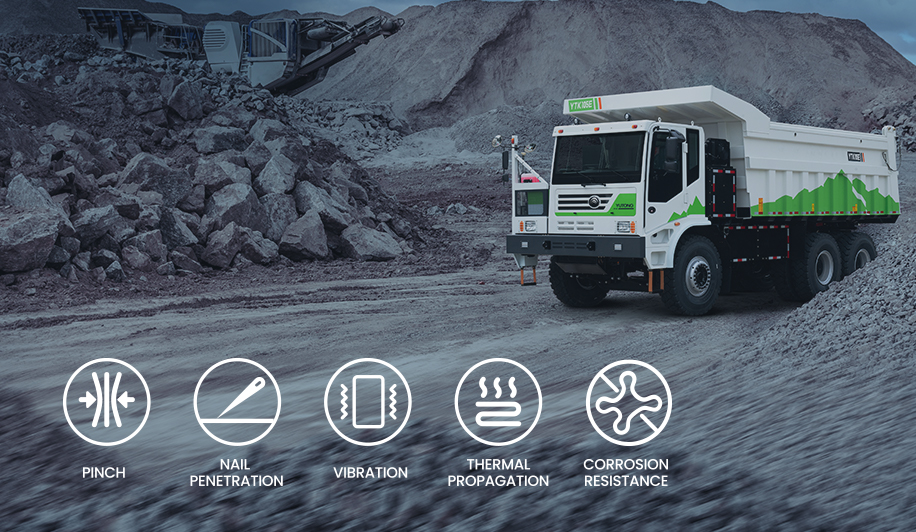

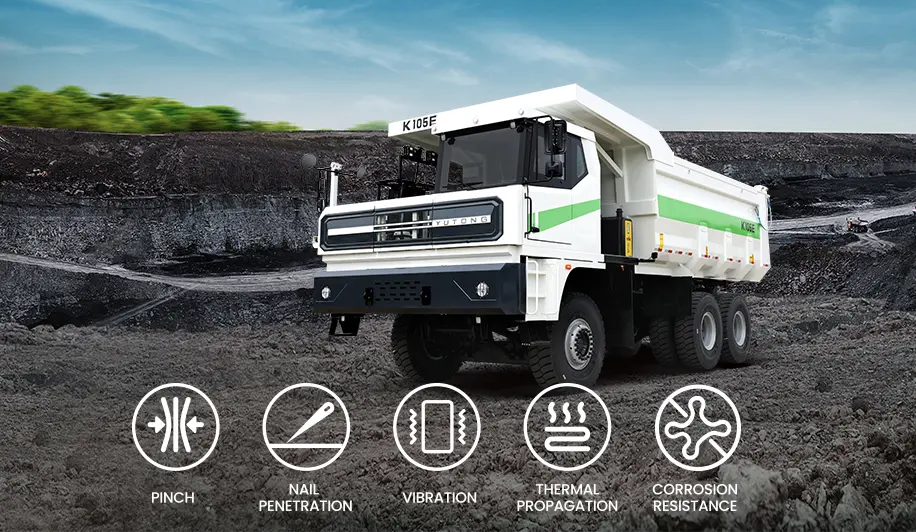

Drawing upon the experience of developing and utilizing 190,000 battery electric commercial vehicles, Yutong has established rigorous testing standards (200 kN pinch, nail penetration, vibration, thermal propagation, and corrosion resistance) that far exceed the industry and national benchmarks, leaving no minor flaw unaddressed.
Enhanced safety
The pursuit of safety is endless, and through various technical solutions from multiple angles, we ensure the safe operation of the vehicle.

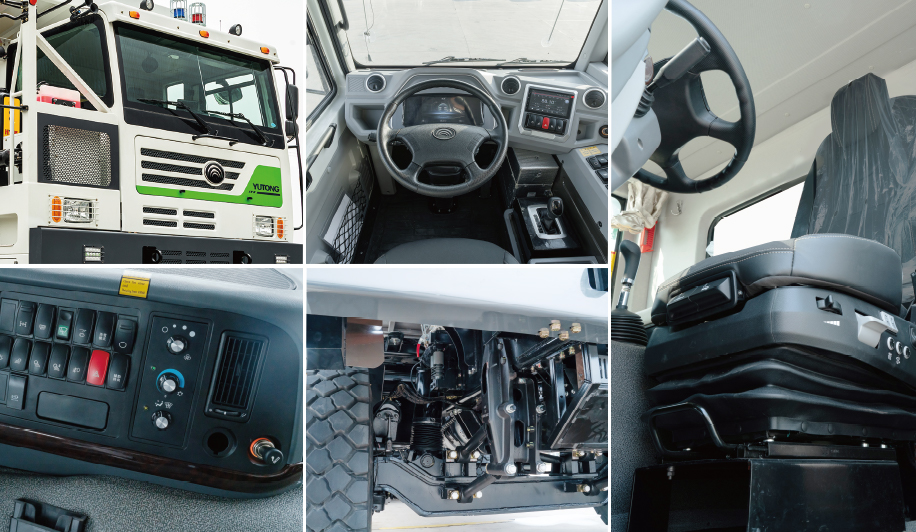

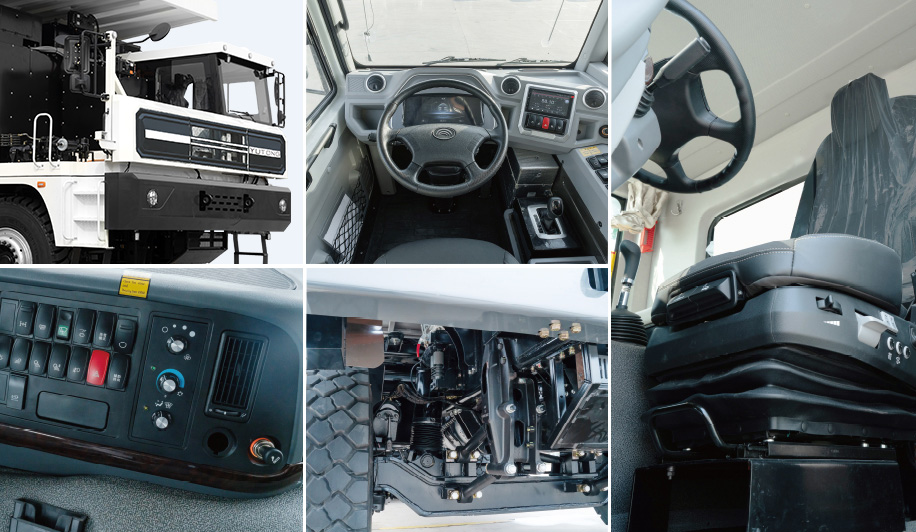

The driver cabin boasts a robust closed-ring that meets ROPS standards. The controls are user-friendly, and the visibility is excellent, which helps in reducing driver fatigue. The driver cabin's efficient thermal insulation for climate control guarantees comfort for both driver and passengers. The full-air suspended driver seat mitigates the impact of harsh conditions in mining areas, lessening disruption to the driver. The use of a hydro-pneumatic suspension tunes the offset frequency of the front suspension to closely match the frequency of human walking, enhancing the driver's comfort.

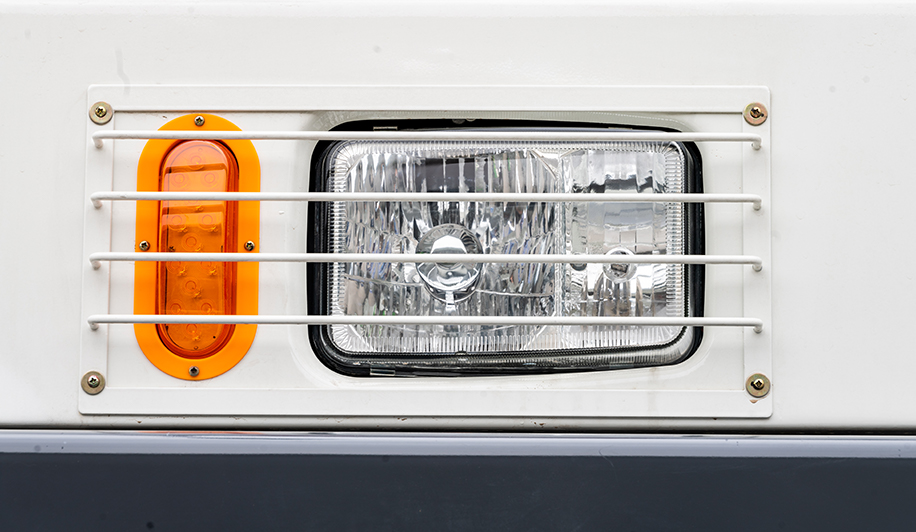

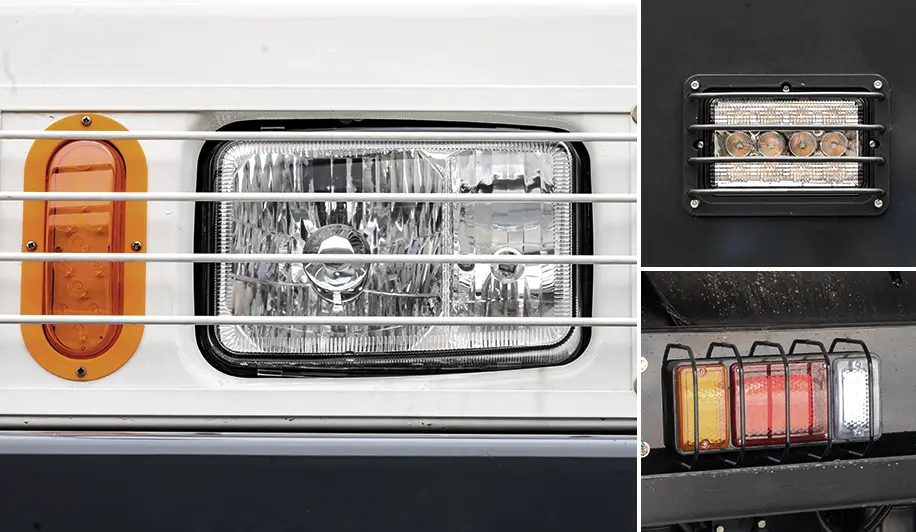

High-intensity LED fog lamps and headlamps are designed with intuitive lighting logic (activating the low beam assist when the high beams are on), which significantly enhances the vehicle's frontal illumination at night. During reversing, the rear work lights automatically turn on, improving the lighting conditions behind the vehicle for nighttime maneuvers and unloading, and as a result, increasing safety.
Battery electric mining trucks are controlled by software systems, with precise, lossless data transmission being crucial for stable operation. Yutong mining trucks are equipped with wiring harnesses that have proprietary intellectual property rights and are designed to resist electromagnetic interference, ensuring that control signals are transmitted stably and precisely, keeping the vehicle under the driver's control at all times.
Through online self-learning technology and output power monitoring, real-time diagnostics and torque validation of electric drive system parameters can be conducted. This enables prompt alerts and safeguards, ensuring the vehicle's safe operation.

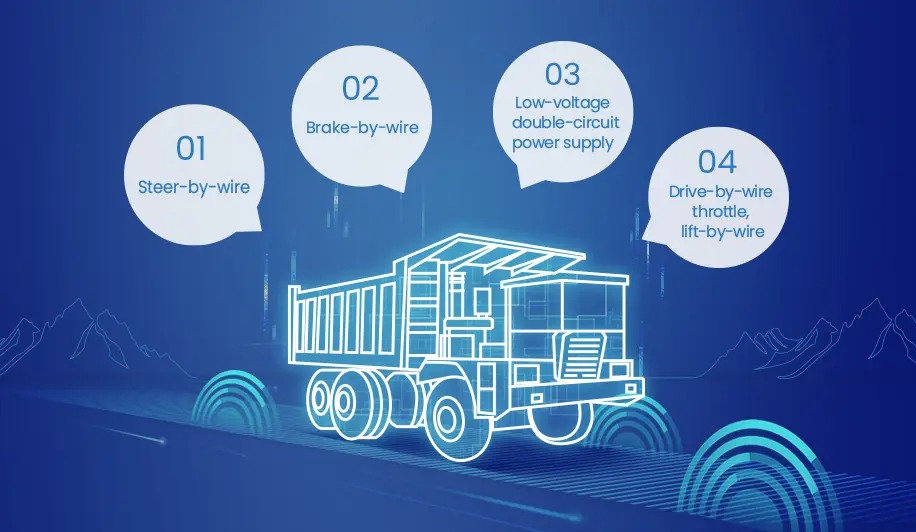

A dual-control system with intellectual property rights is adopted to mitigate the risk of the vehicle becoming uncontrollable in the event of a single control system failure during downhill under load.

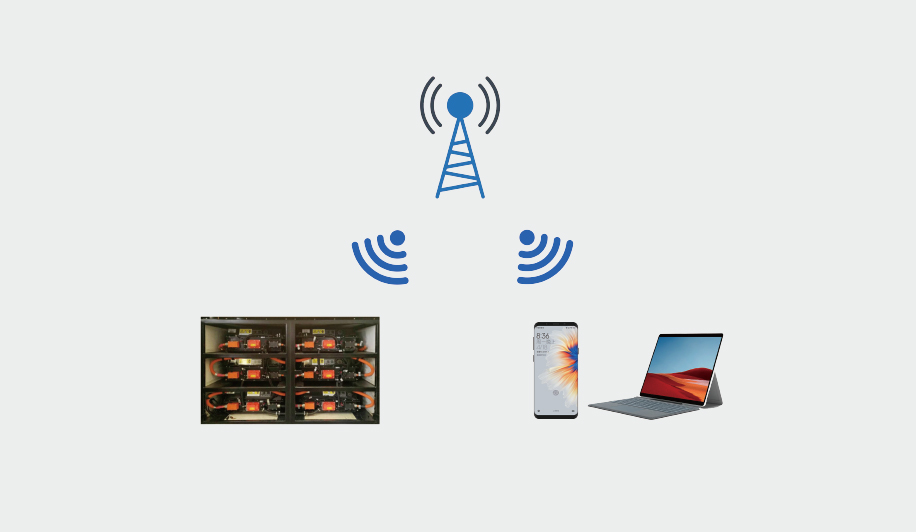

Yutong has pioneered the development of a 24-hour monitoring system for traction batteries, which allows for round-the-clock monitoring and early warning of battery status, enhancing the safety of the battery system.
New Energy Technology
-
Electric Control
-
Battery
-
E-Drive
-
ELECTRIC
CONTROL
-
BATTERY
-
E-DRIVE
-
Electric Control
-
Battery
-
E-Drive
-

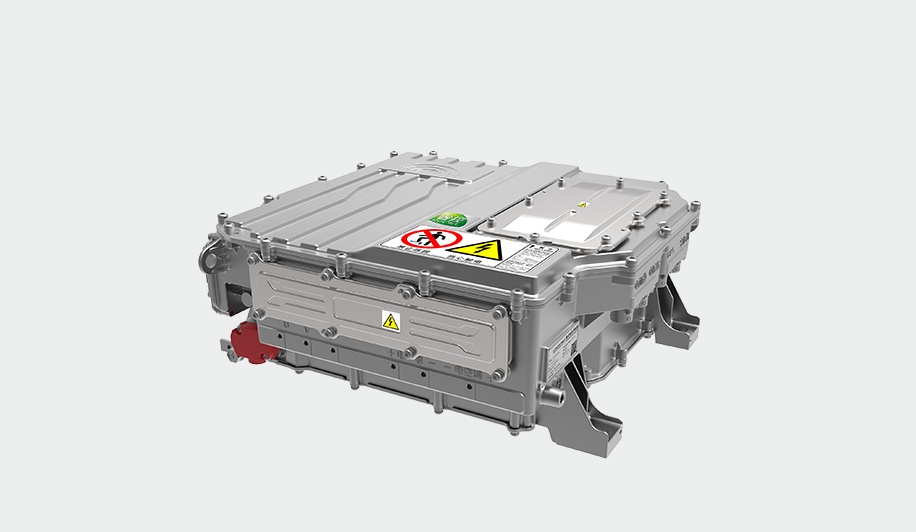

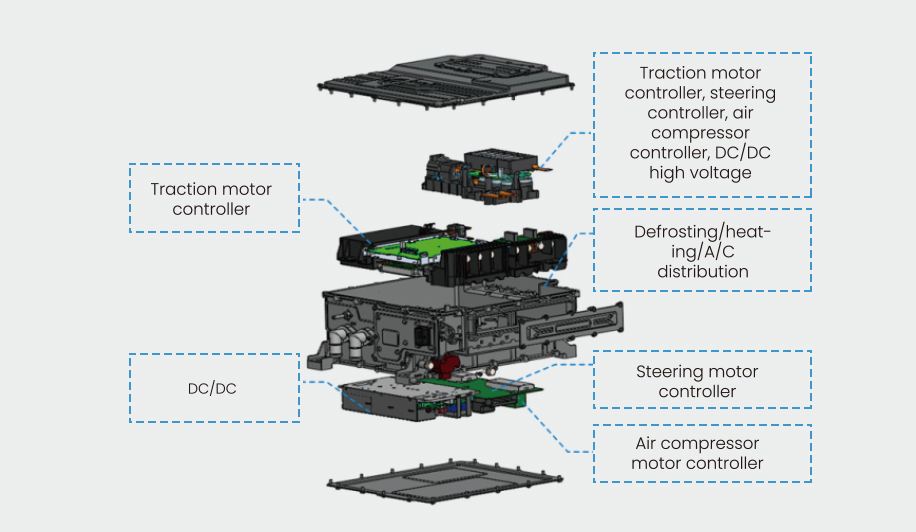

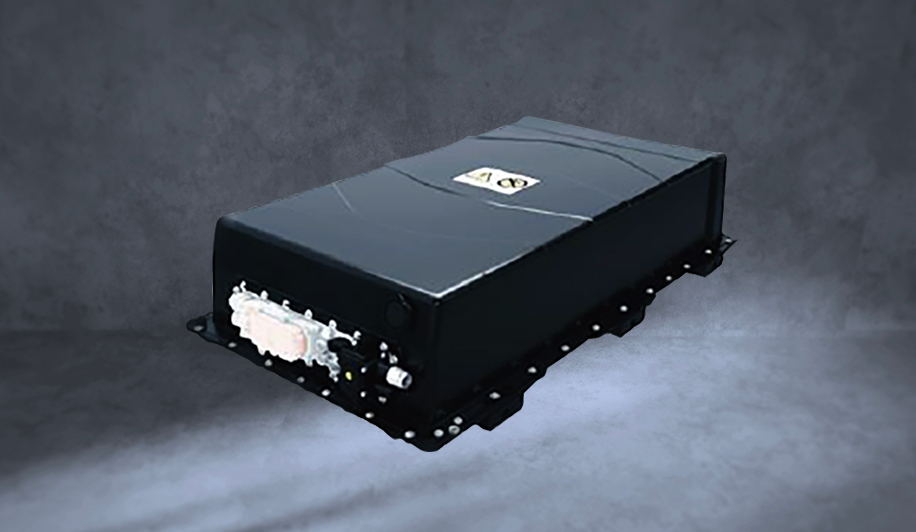

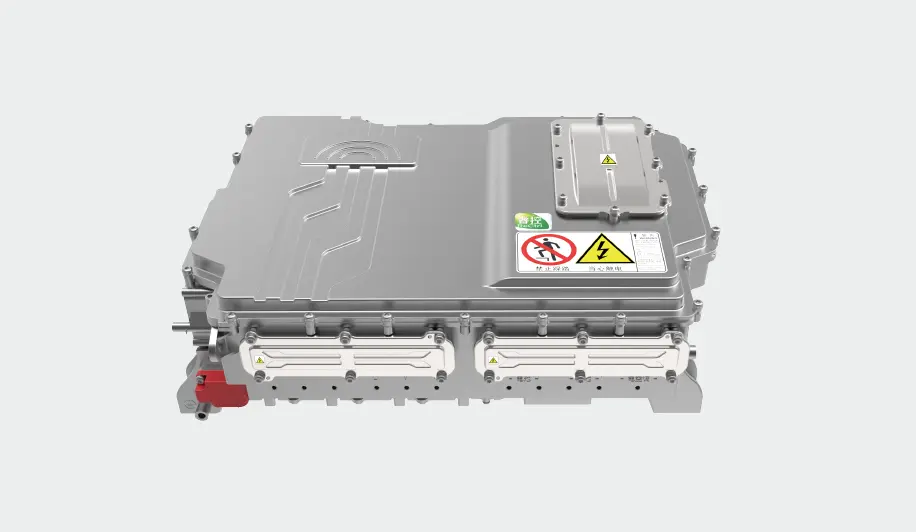

Multi-in-One Sic Power Domain Controller
-
Maximum Efficiency 99.5%
-
System Weight Reduced by 50%
-
Energy Consumption Lowered by 5%
-
-

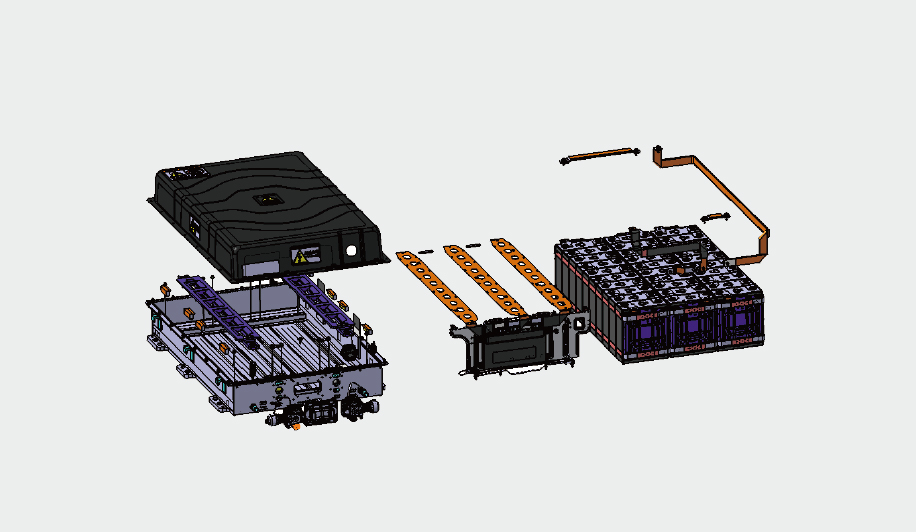

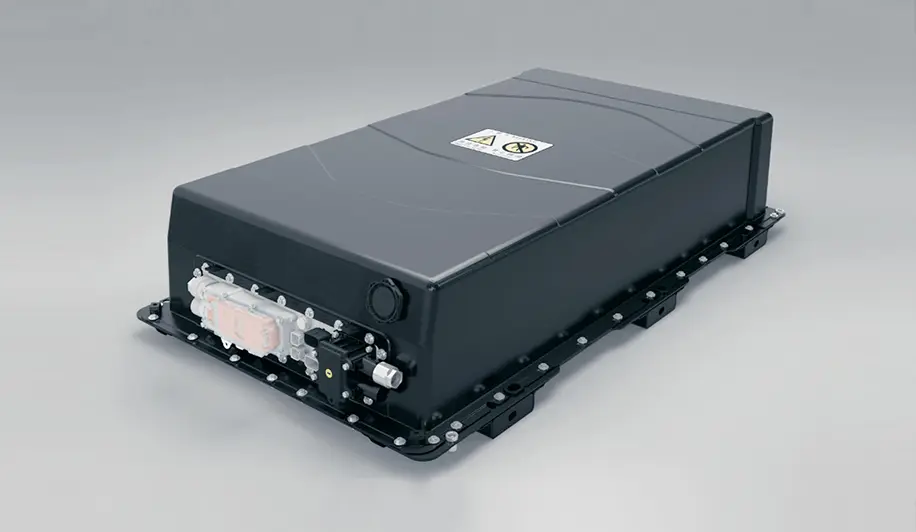

A New Generation of High-Safety Super-Powered Batteries
-
Sandwich fire protection structure, nitrogen protection system, 2m×72h extreme waterproof, 1300°C extreme fire protection
-
High specific energy cell, highly integrated structural design, volume density increased by 38%, space saving by 40%
-
High-strength structural design, efficient temperature uniformity, intelligent balance, service life of 0.3 ~ 1.5 million kilometers
-
-

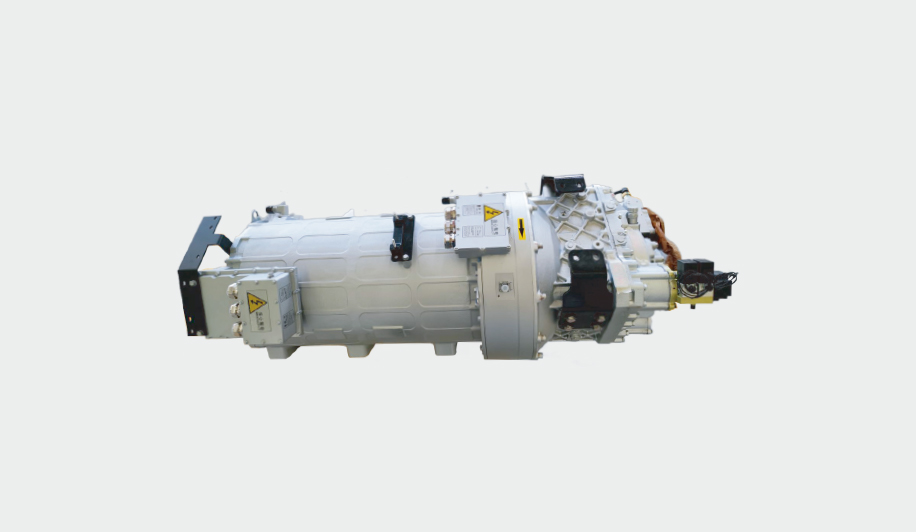

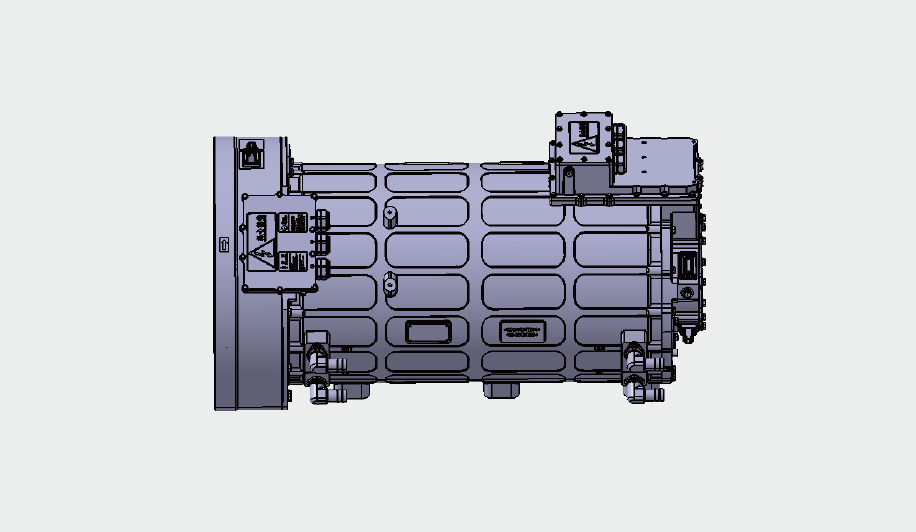

New-Generation Efficient and Lightweight Integrated E-Axle
-
High-Speed Less-Stage Transmission
-
Low Sliding Ratio and Large Speed Ratio Gear
-
Road Spectrum for New Energy Commercial Vehicle
-
-
Gallery
-
Video
Technical Specifications
-
Intelligent IoVoptional
-
L*W*H (mm)10,045*3,750*4,250
-
Wheelbase (mm)4,400+1,750
-
Maximum gradeability (%)35
-
Minimum turning diameter (m)≤24
