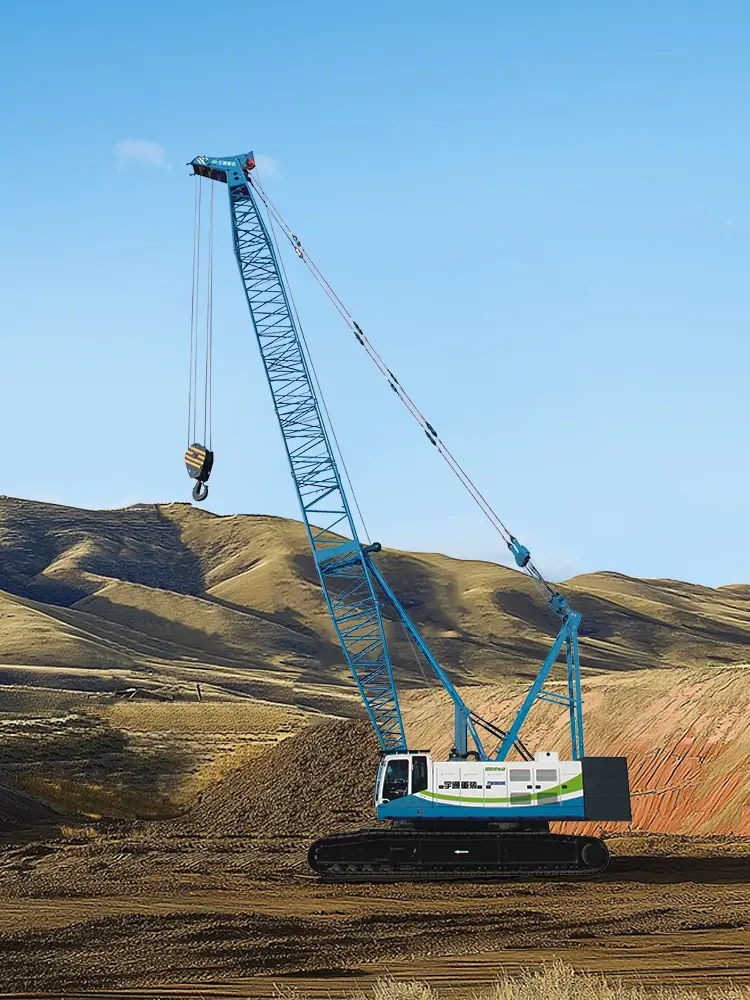

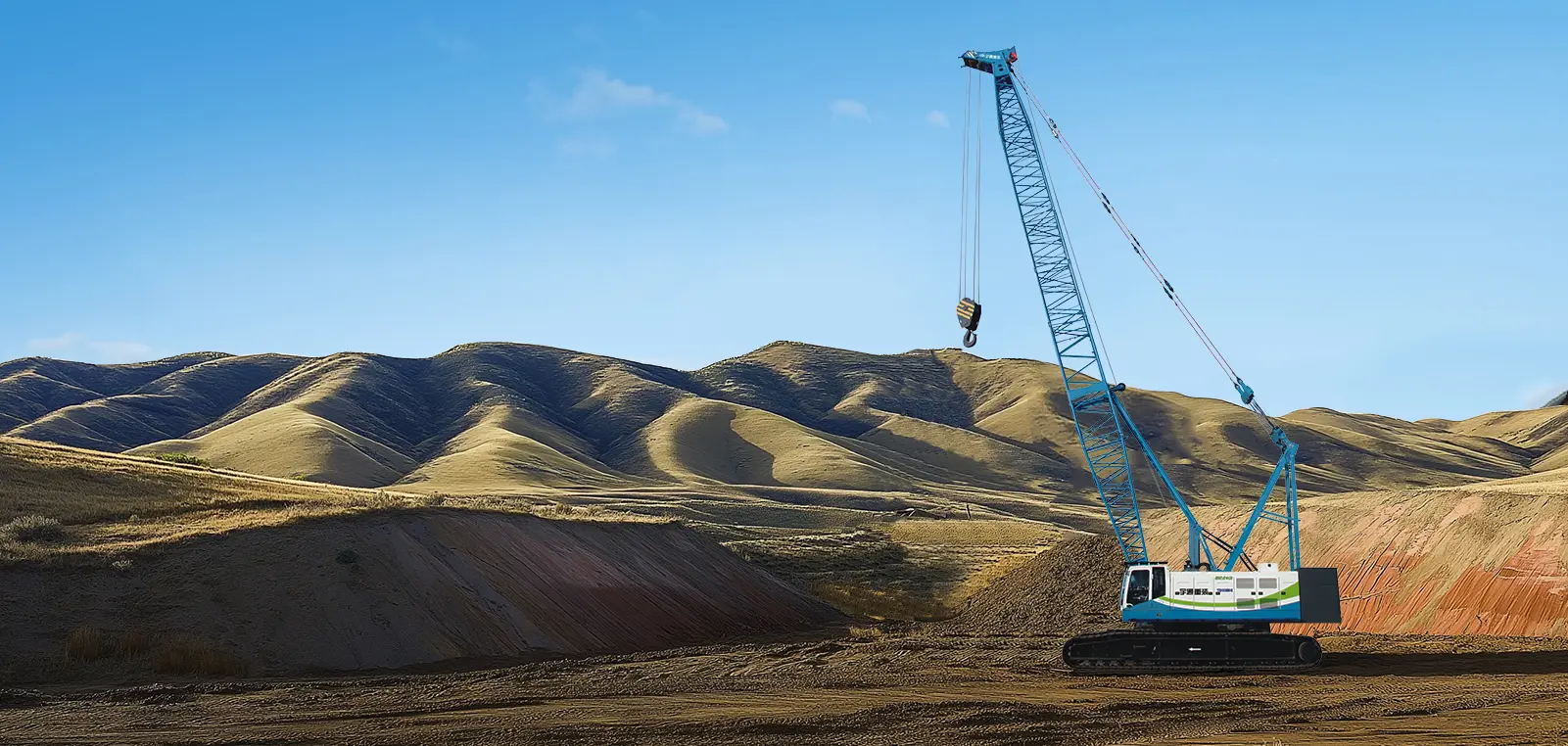

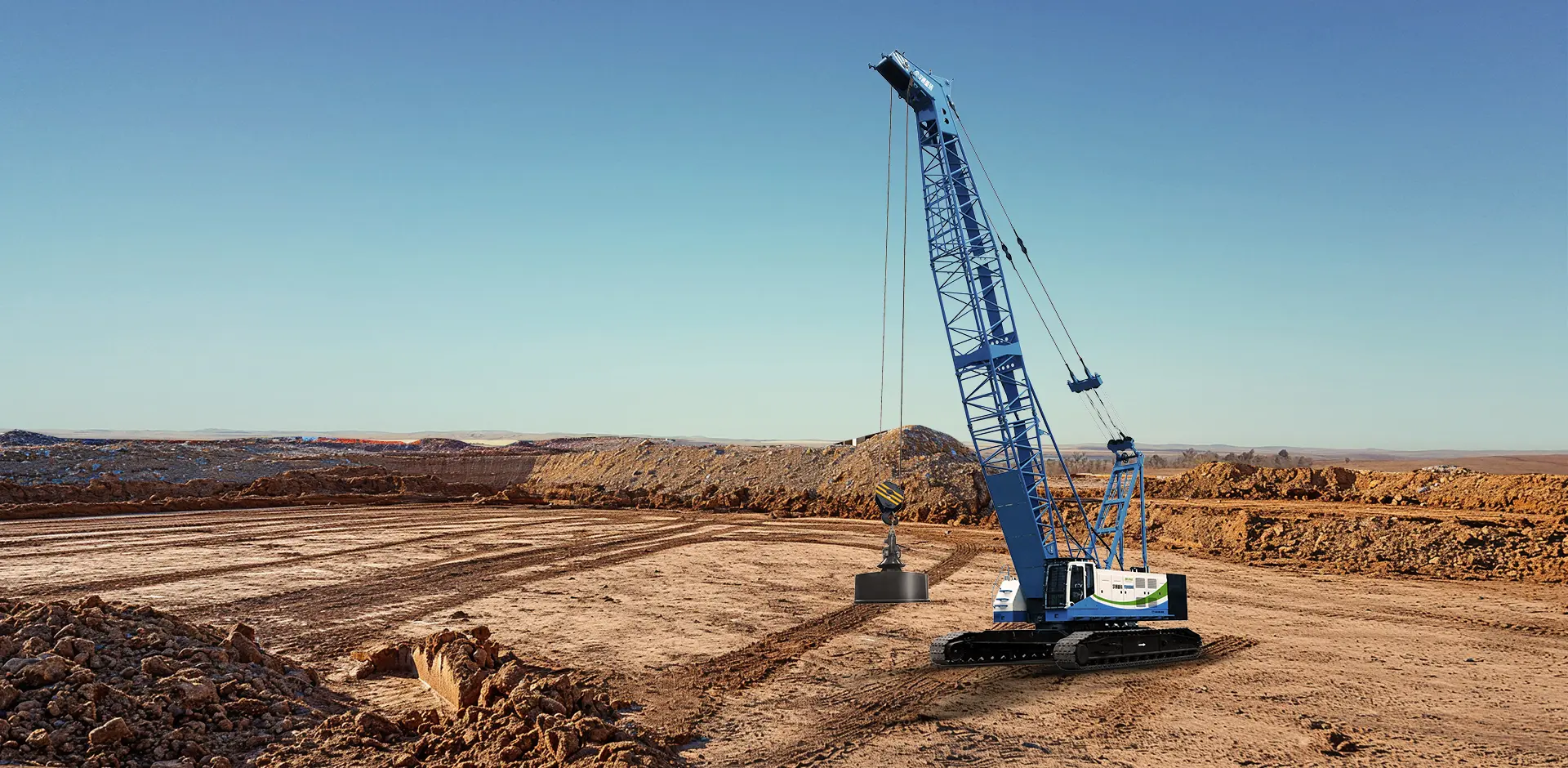

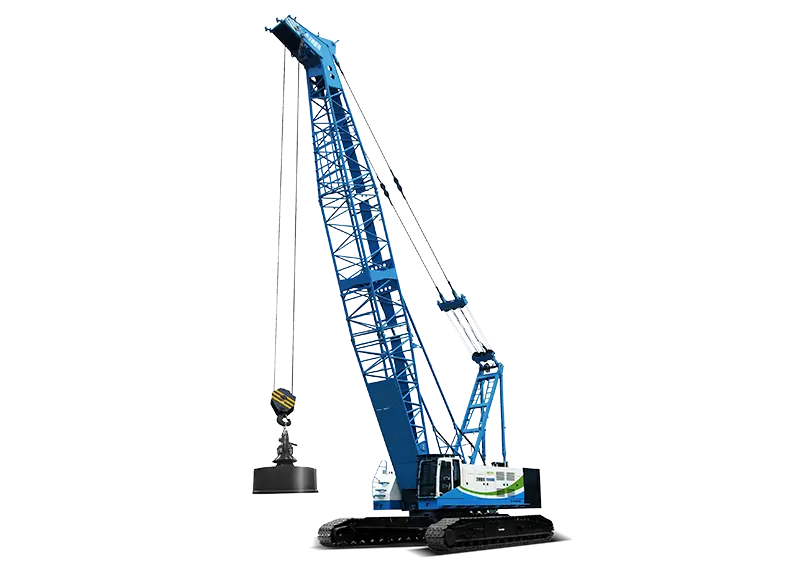

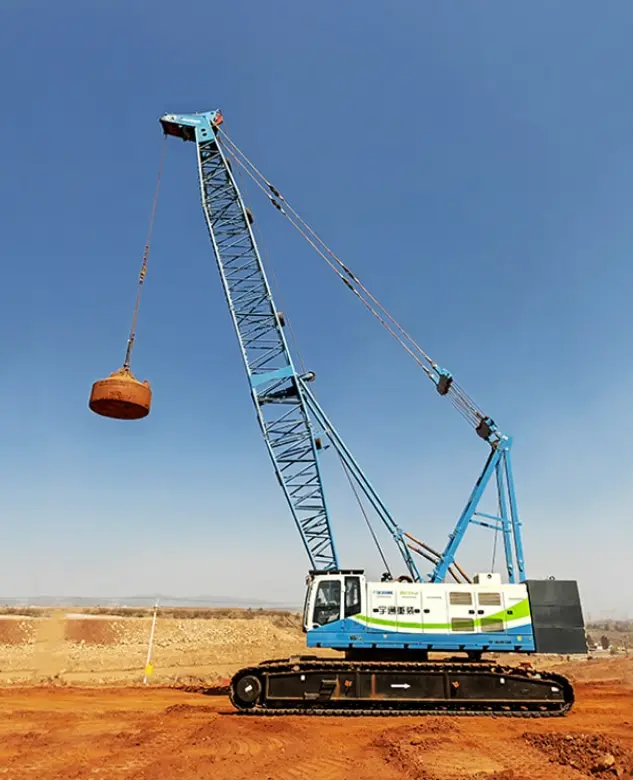

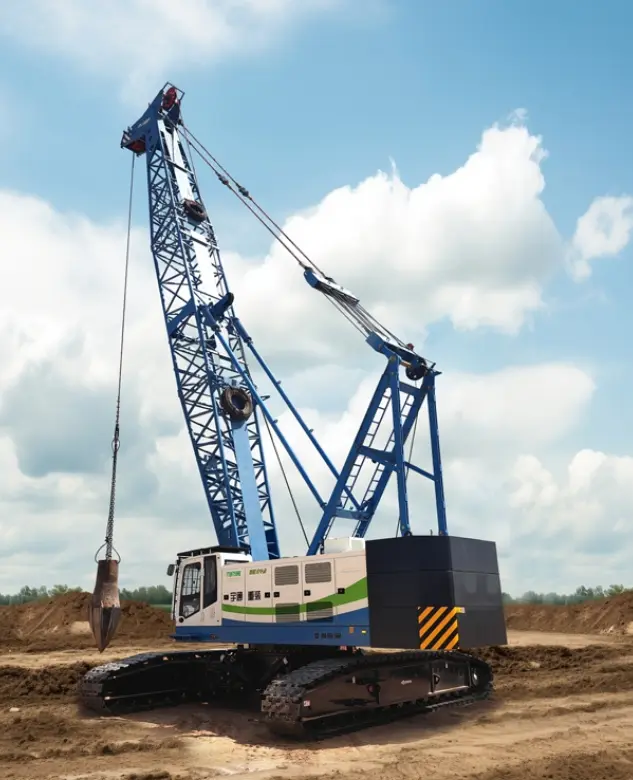

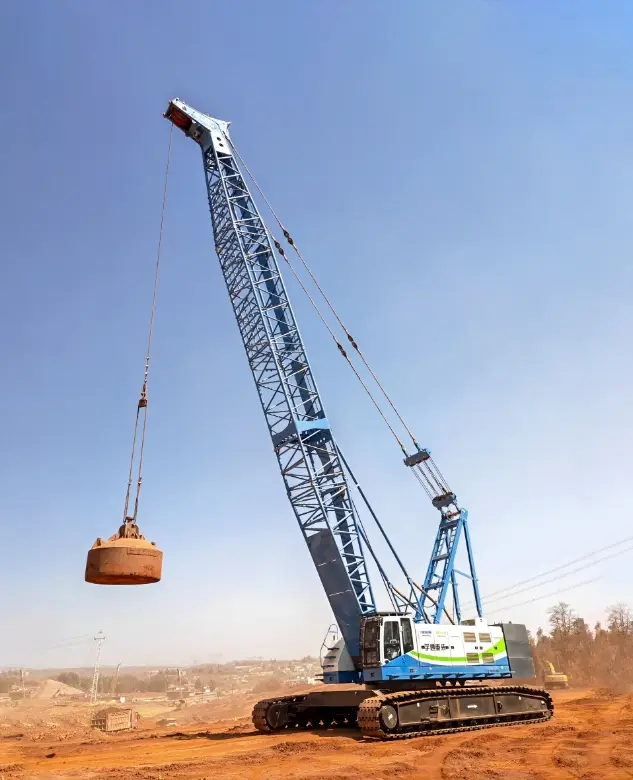

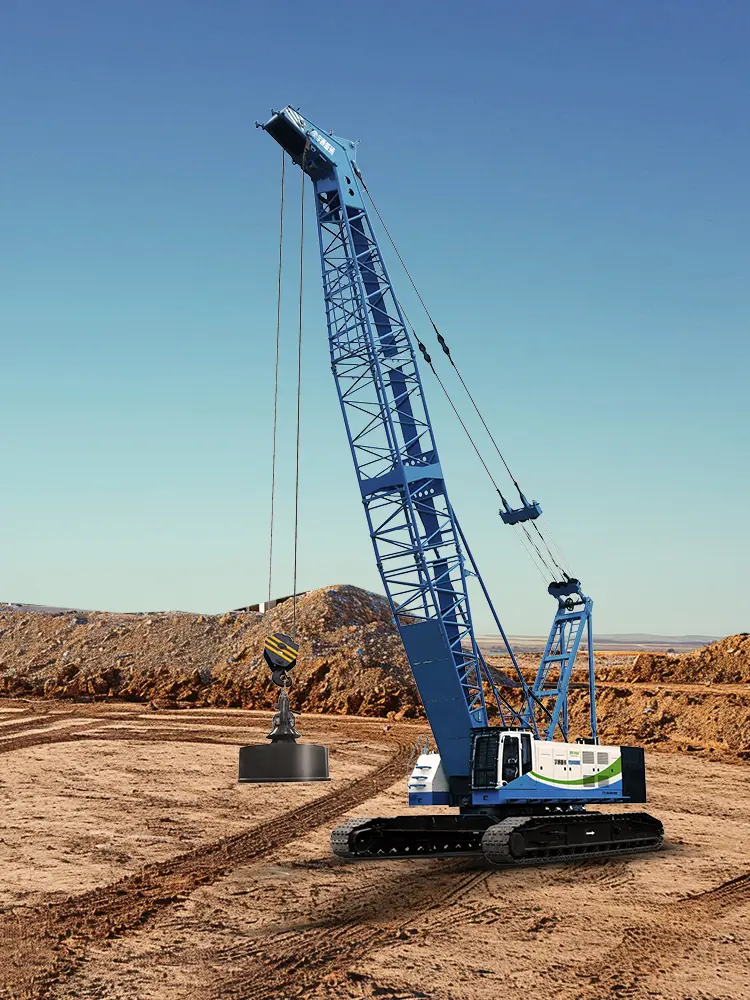

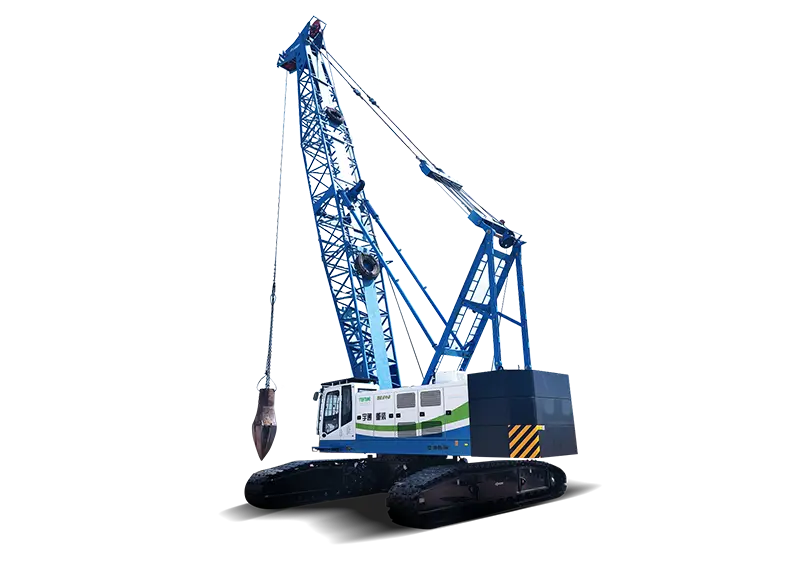

Extended-range electric dynamic compaction crane
- More efficient, lower consumption, more reliable and more intelligent
More efficient, lower consumption, more reliable and more intelligent
The main winch is directly driven by a 310kW electric motor. Compared with the traditional dynamic compaction, the winch lifting speed is increased by more than 60% and the single-cycle construction efficiency is improved by more than 30%.
The main winch mechanism is directly driven by an electric motor instead of a hydraulic transmission, with high transmission efficiency. This reduces the energy loss of the hydraulic system, saving the energy consumption cost of the machine by more than 25%.
Yutong's “Three-Electric Technology” (Electric motor & Electric control & Battery ) boast excellent characteristics such as high temperature resistance, corrosion resistance, enhanced water infiltration resistance and enhanced shock resistance. In addition, the extended warranty on the “Three-Electric Technology” supports the reliable use of the machine.

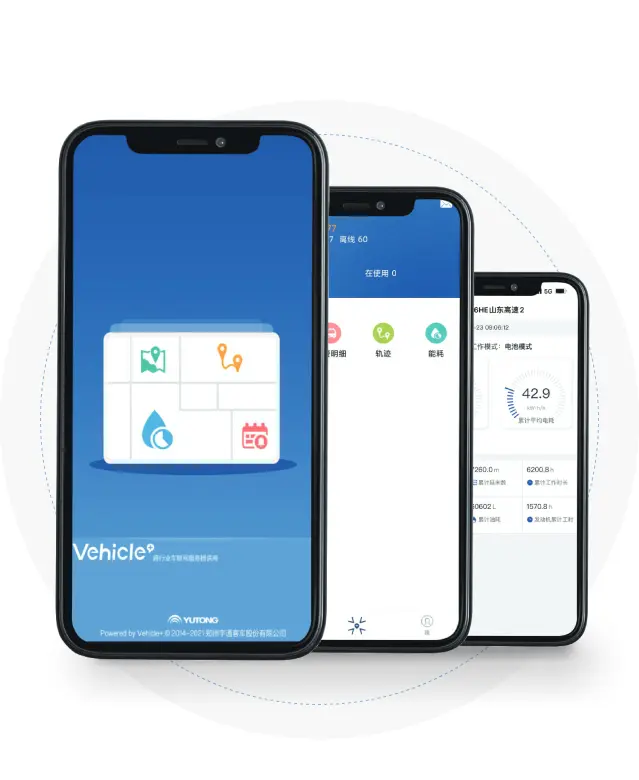

Mature YEA technology is employed. The intelligent connected system is used to monitor the working status of vehicles in real time, carry out remote fault analysis and diagnosis, and report work logs.
New Energy Technology
-
Electric Control
-
Battery
-
E-Drive
-
ELECTRIC
CONTROL
-
BATTERY
-
E-DRIVE
-
Electric Control
-
Battery
-
E-Drive
-
Multi-in-One Sic Power Domain Controller
-
Maximum Efficiency 99.5%
-
System Weight Reduced by 50%
-
Energy Consumption Lowered by 5%
-
-
A New Generation of High-Safety Super-Powered Batteries
-
Sandwich fire protection structure, nitrogen protection system, 2m×72h extreme waterproof, 1300°C extreme fire protection
-
High specific energy cell, highly integrated structural design, volume density increased by 38%, space saving by 40%
-
High-strength structural design, efficient temperature uniformity, intelligent balance, service life of 0.3 ~ 1.5 million kilometers
-
-
New-Generation Efficient and Lightweight Integrated E-Axle
-
High-Speed Less-Stage Transmission
-
Low Sliding Ratio and Large Speed Ratio Gear
-
Road Spectrum for New Energy Commercial Vehicle
-
Technical Specifications
-
YTQH750HE
-
YTQH3000MHE
-
-
Intelligent IoVoptional
-
Max. lifting pulling force (t)30
-
Max. lifing height (m)20 (With attachments)
-
Max. compaction energy without attachments (t·m)750
-
Max. pounder weight with attachments (t)80
-
Max. compaction energy with attachments (t·m)1600
-
Max. pounder weight without attachments (t)37.5 (The ground adsorption coefficient is 1.5)
-
Intelligent IoVoptional
-
Max. lifting pulling force (t)30
-
Max. lifing height (m)22 (With attachments)
-
Max. compaction energy without attachments (t·m)1200
-
Max. pounder weight with attachments (t)135
-
Max. compaction energy with attachments (t·m)3000
-
Max. pounder weight without attachments (t)60 (The ground adsorption coefficient is 1.5)
-
