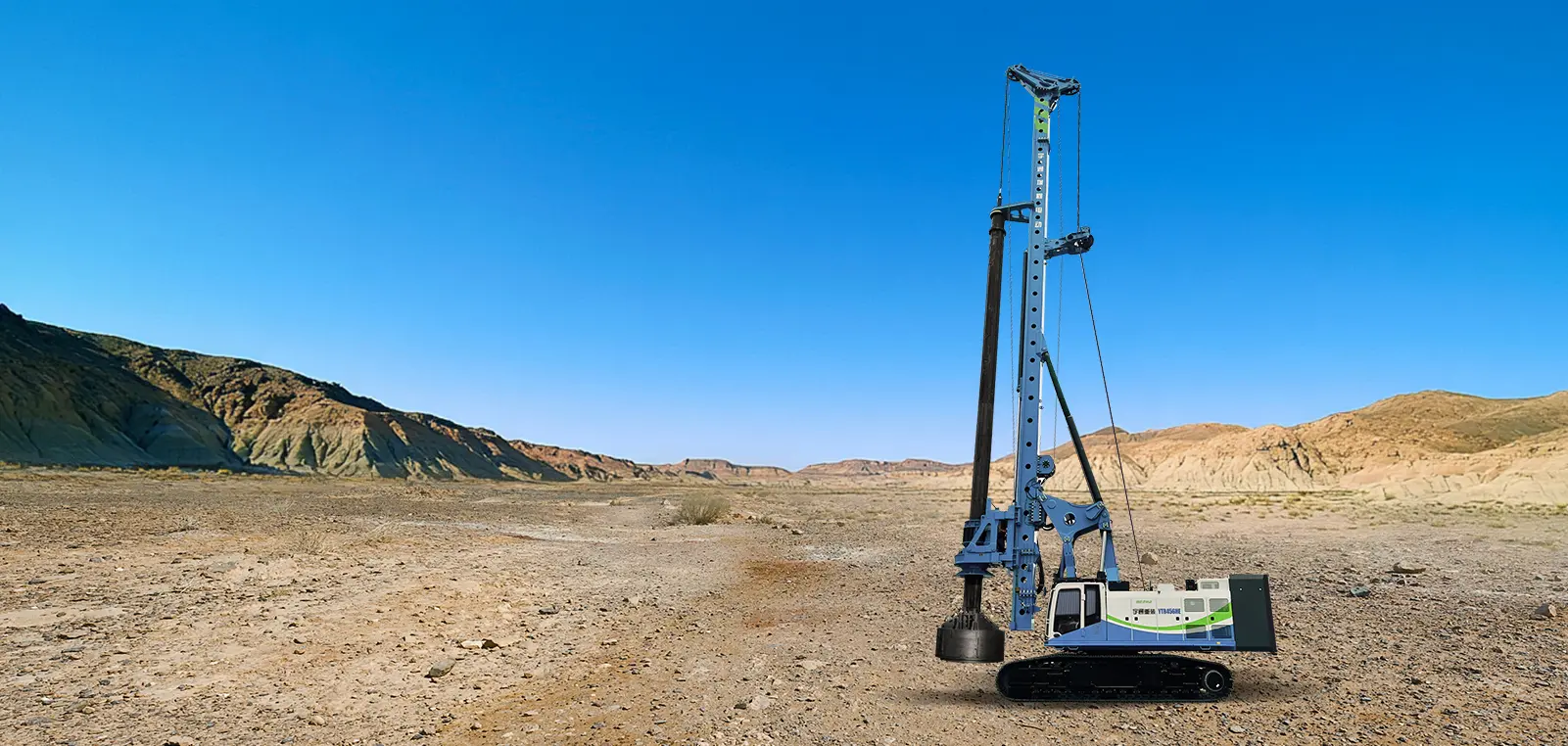

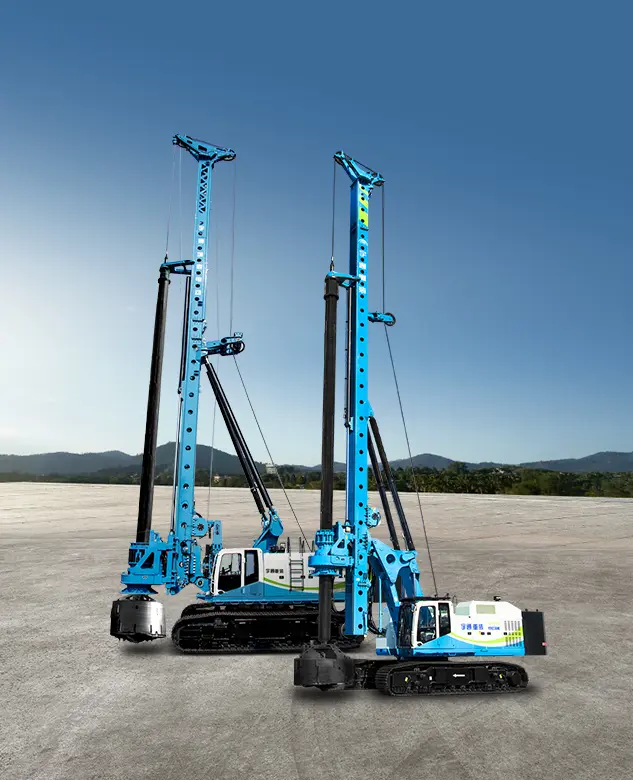

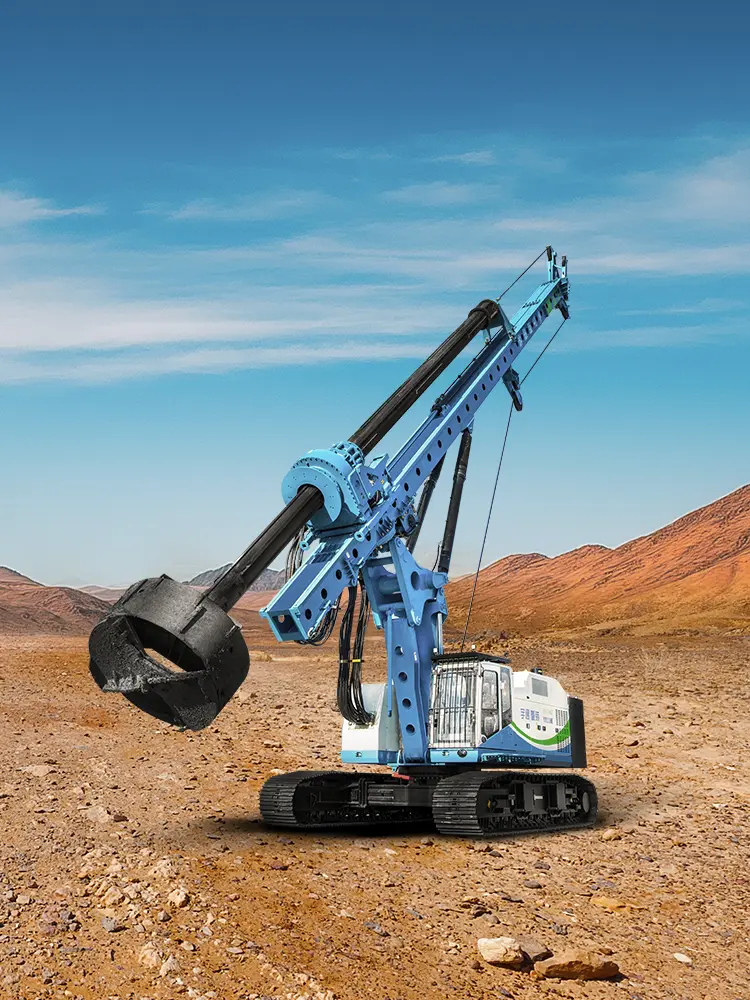

YTR466HE YTR466HE

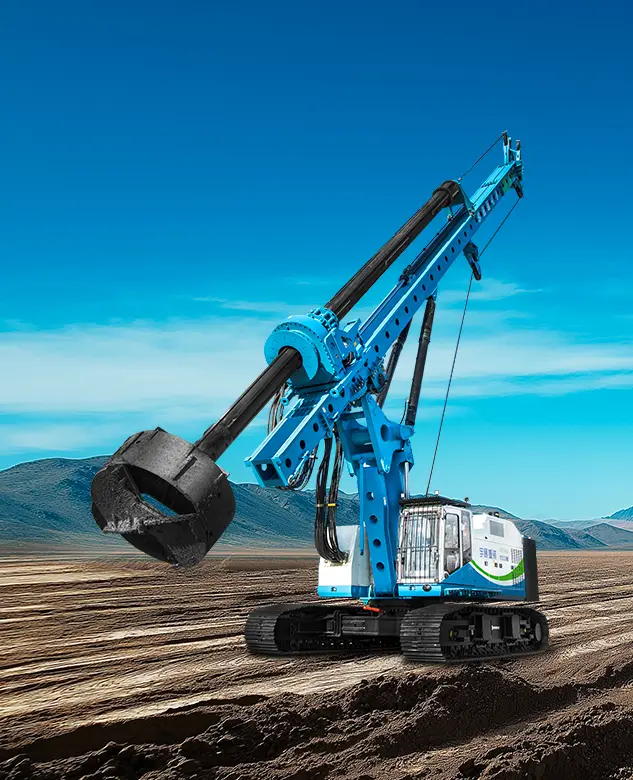

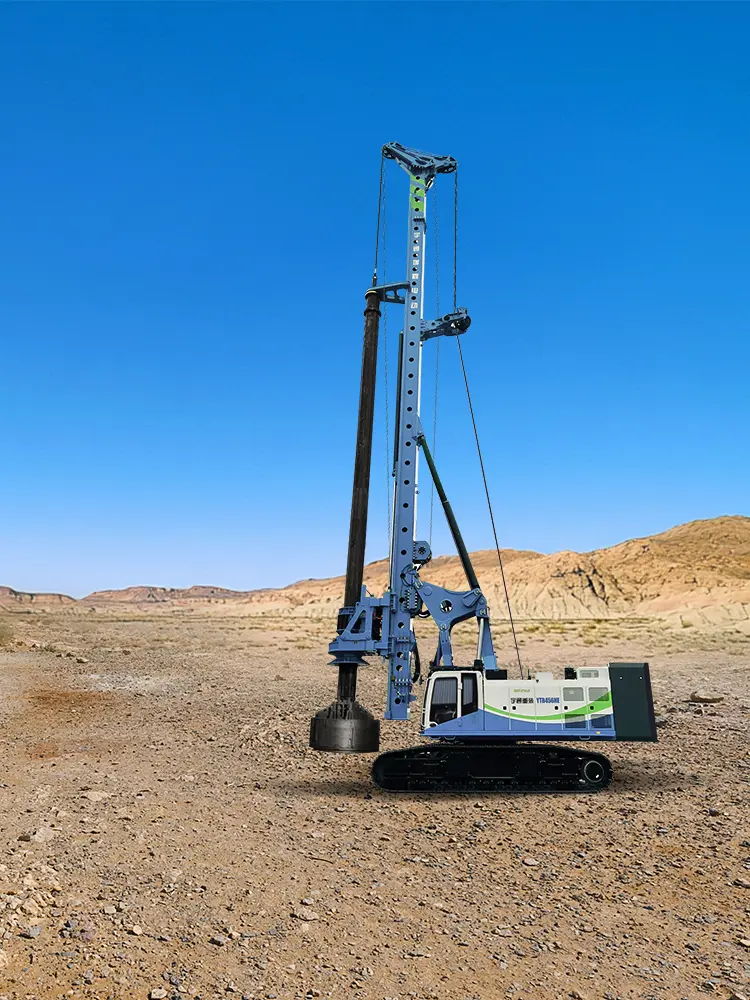

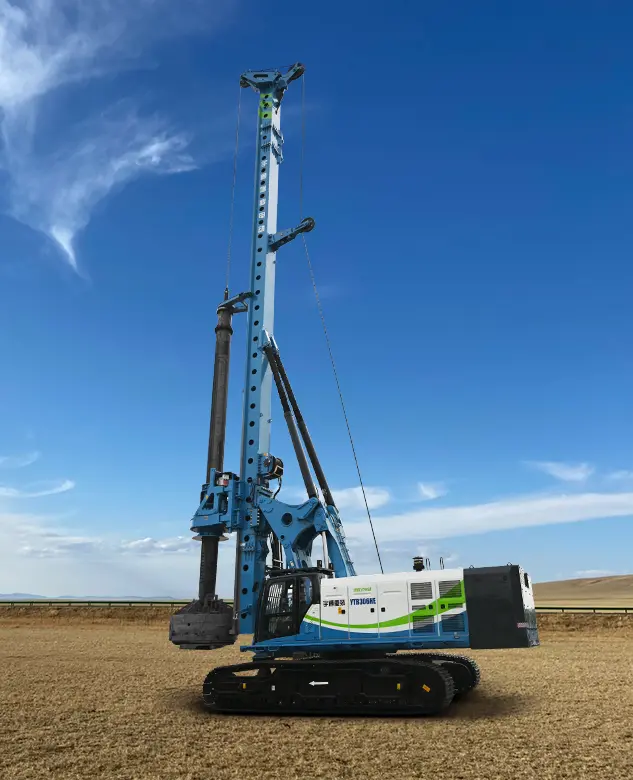

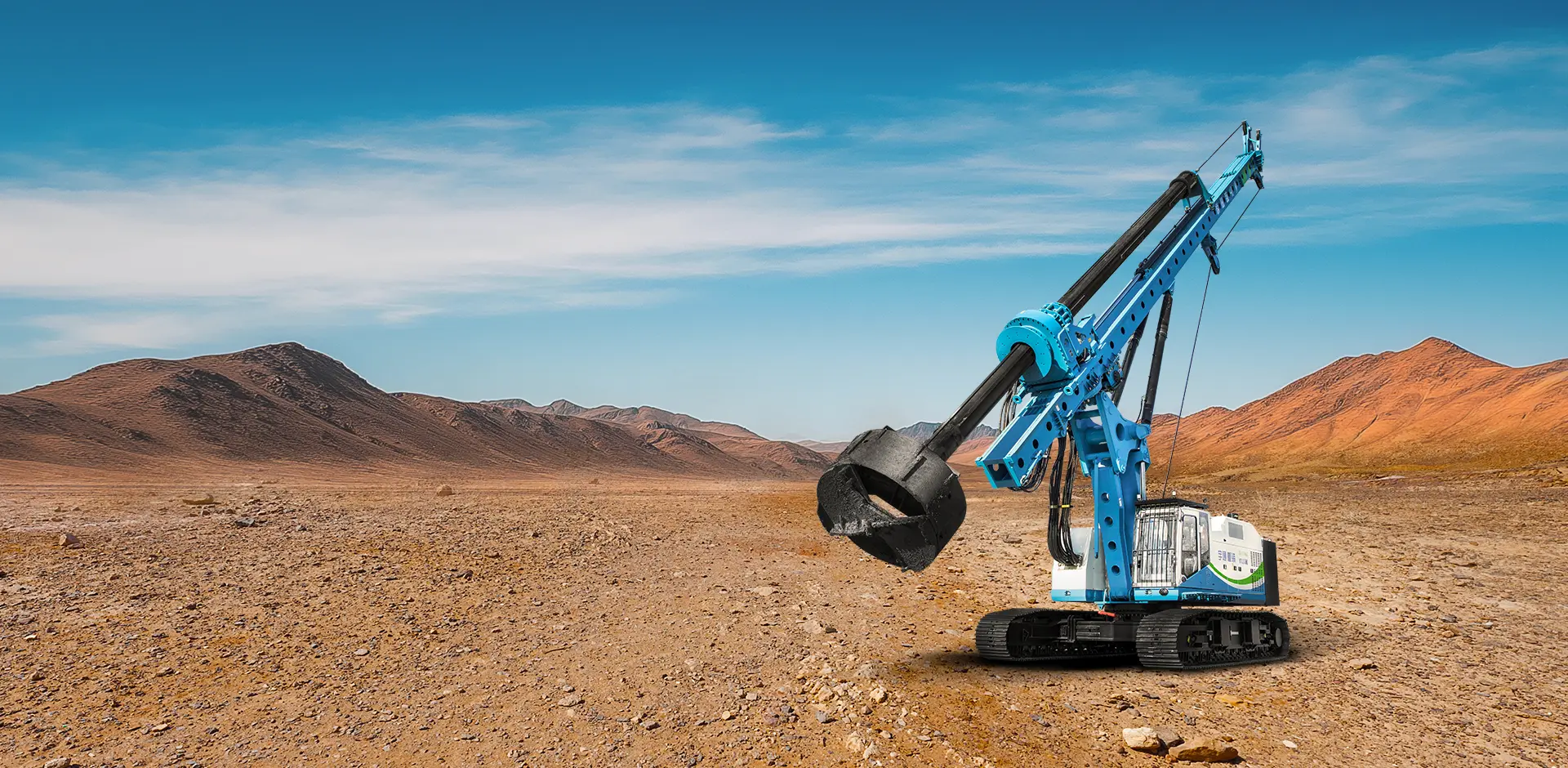

Extended-range electric piling rig

  • High efficiency,low consumption,reliable and intelligent
Extended-range electric piling rig
High efficiency,low consumption,reliable and intelligent
YTR466HE YTR466HE

Electric technology, four core attributes to create greater value for customers

YTR466HE
High efficiency

  • Yutong D-power ultra-integrated electric driving chain

  • Motor torque sensitivity increase by 4 times, instantaneous burst increase by 80%

  • Main winch output power 30% higher than fuel type piling rig

Contact Us>
Low consumption

  • Yutong D-power ultra-integrated electric driving chain

  • Extended range mode saves 40%-50% fuel cost

  • Main winch energy recovery rate can reach 50%

  • Energy utilization efficiency of pure electric piling rig can reach 87%, which is more than 62% higher than that of fuel type piling rig

Contact Us>
YTR466HE
YTR466HE
Intelligent

  • Yutong D-power ultra-integrated electric driving chain

  • Real-time monitoring to parts, early warning accuracy ≥90%

  • Machine condition can be checked anywhere through mobile APP

Contact Us>
Reliable

  • Yutong ReCtrl technology won the Second Prize of 2015 National Science and Technology Progress Award

  • Yutong electric piling rig has a cumulative working time of more than 80,000 hours

  • Three-Electric System (battery, electric motor, electric control) warranty is 5 years /10000 hours

Contact Us>
YTR466HE

New Energy Technology

  • Electric Control
  • Battery
  • E-Drive

  • ELECTRIC

    CONTROL

  • BATTERY

  • E-DRIVE

  • Electric Control
  • Battery
  • E-Drive
  • Multi-in-One Sic Power Domain Controller

    • Maximum Efficiency 99.5%

    • System Weight Reduced by 50%

    • Energy Consumption Lowered by 5%

    Learn More>
  • A New Generation of High-Safety Super-Powered Batteries

    • Sandwich fire protection structure, nitrogen protection system, 2m×72h extreme waterproof, 1300°C extreme fire protection

    • High specific energy cell, highly integrated structural design, volume density increased by 38%, space saving by 40%

    • High-strength structural design, efficient temperature uniformity, intelligent balance, service life of 0.3 ~ 1.5 million kilometers

    Learn More>
  • New-Generation Efficient and Lightweight Integrated E-Axle

    • High-Speed Less-Stage Transmission

    • Low Sliding Ratio and Large Speed Ratio Gear

    • Road Spectrum for New Energy Commercial Vehicle

    Learn More>

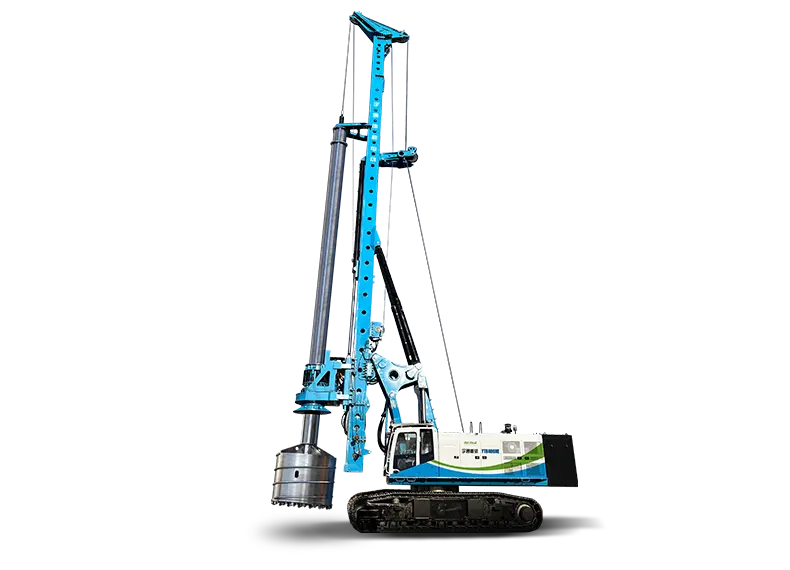

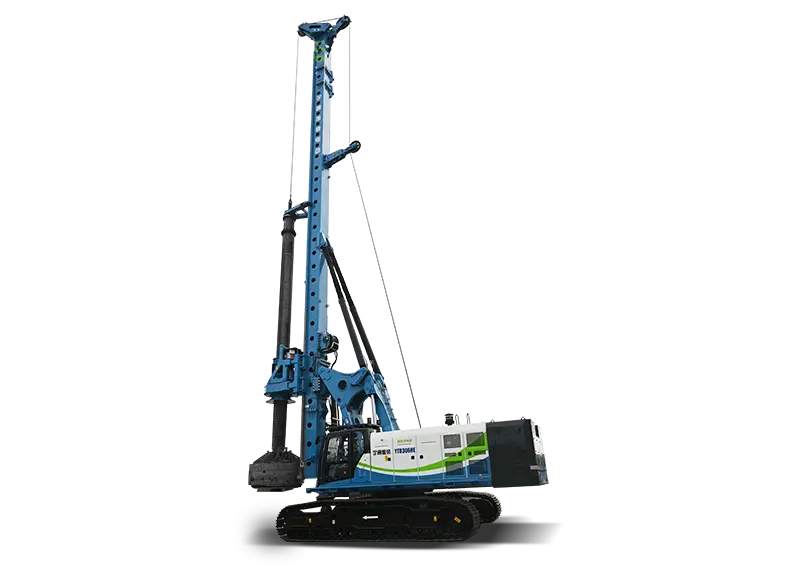

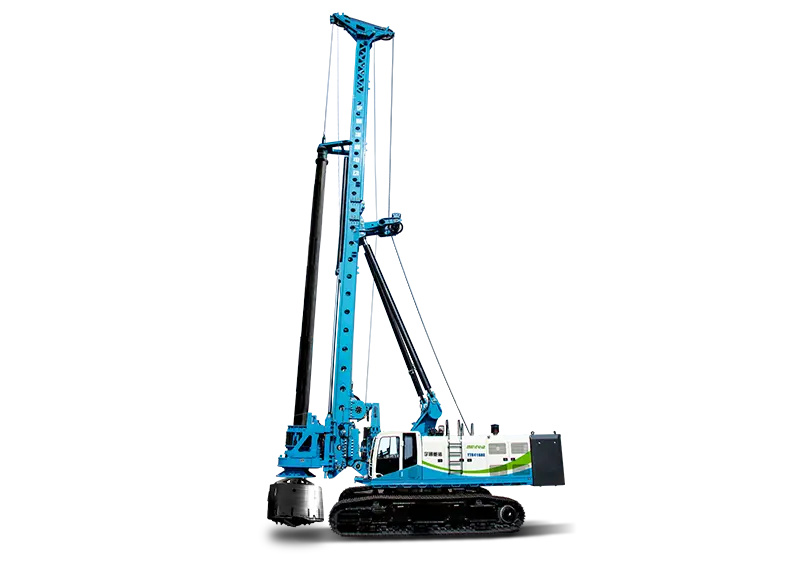

Technical Specifications

  • YTR266HE
  • YTR236HES
  • YTR306HE
  • YTR366HE
  • YTR406HE
  • YTR416HE
  • YTR456HE
  • YTR466HE
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      280
    • Max.drilling diameter（mm）
      2,200
    • Max.output torque （kN·m）
      266
    • Max.depth（m）
      58/73/87
    • Range extender type
      QSB5.9 CS4
    • Range extender power（kW）
      154
    • Crowd force（kN)
      230
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      240
    • Max.drilling diameter（mm）
      2,000
    • Max.output torque （kN·m）
      246
    • Max.depth（m）
      54/68
    • Range extender type
      QSB5.9 CS4
    • Range extender power（kW）
      154
    • Crowd force（kN)
      230
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      330
    • Max.drilling diameter（mm）
      2,500
    • Max.output torque （kN·m）
      320
    • Max.depth（m）
      51/94,65/100(special)
    • Range extender type
      B6.7CS4 290C
    • Range extender power（kW）
      214
    • Crowd force（kN)
      275
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      380
    • Max.drilling diameter（mm）
      2,500
    • Max.output torque （kN·m）
      366
    • Max.depth（m）
      69/106
    • Range extender type
      B6.7CS4 290C
    • Range extender power（kW）
      214
    • Crowd force（kN)
      300
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      420
    • Max.drilling diameter（mm）
      2,800
    • Max.output torque （kN·m）
      406
    • Max.depth（m）
      69/85/106
    • Range extender type
      L9CS4-360C
    • Range extender power（kW）
      264
    • Crowd force（kN)
      340
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      430
    • Max.drilling diameter（mm）
      2,500(3,000)
    • Max.output torque （kN·m）
      416
    • Max.depth（m）
      69/106
    • Range extender type
      L9CS4-360C
    • Range extender power（kW）
      264
    • Crowd force（kN)
      300
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      450
    • Max.drilling diameter（mm）
      2,800
    • Max.output torque （kN·m）
      456
    • Max.depth（m）
      73/92/112
    • Range extender type
      L9CS4-360C
    • Range extender power（kW）
      264
    • Crowd force（kN)
      400
    • Intelligent  IoV
      optional
    • Lifting capacity（kN)
      560
    • Max.drilling diameter（mm）
      3,000
    • Max.output torque （kN·m）
      466
    • Max.depth（m）
      116
    • Range extender type
      L9CS4-360C
    • Range extender power（kW）
      264
    • Crowd force（kN)
      400

Enter the world of Yutong piling rig

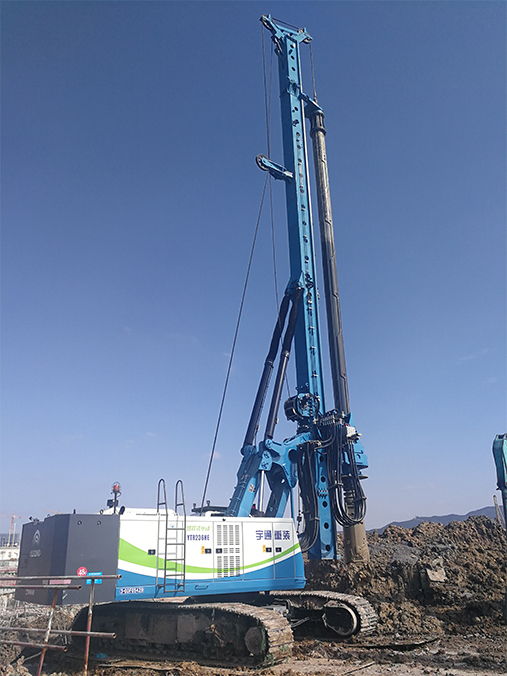

Yutong electric piling rig construction case——YTR236HE in Fujian Province

  • Extended range mode saves energy consumption by more than 40%, saving energy cost of 800 RMB per day; Pure electric mode saves energy consumption by more than 60%, saving energy cost of 1,200 RMB per day.

    Pure electric mode construction noise is low, the job site is close to residential areas, and can do 2 hours more work at night.

Yutong electric piling rig construction case——YTR236HE in Fujian Province

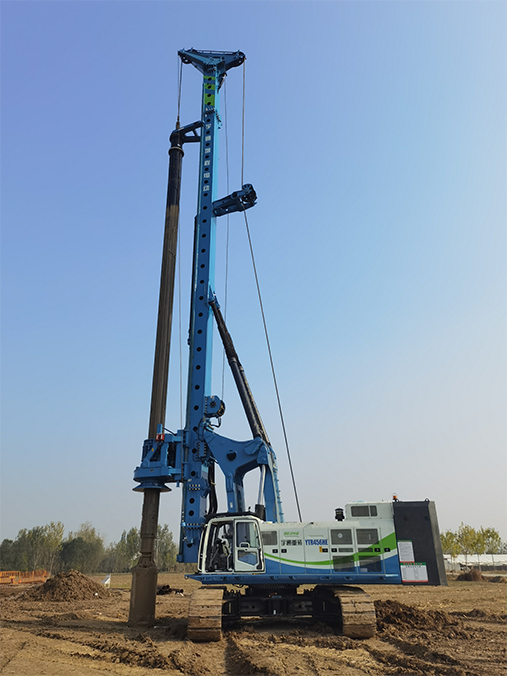

Yutong electric piling rig construction case- YTR456HE in shandong Province (Northern china)

  • Compete with the same level piling rig at the same job site, the efficiency is increased by 21%, the energy consumption of pure electric operation is reduced by 70% (the electricity price is 1.2 Yuan/kWh, the diesel price is 8 Yuan /L),and the energy consumption of extended range operation is reduced by 40%.

Yutong electric piling rig construction case- YTR456HE in shandong Province (Northern china)

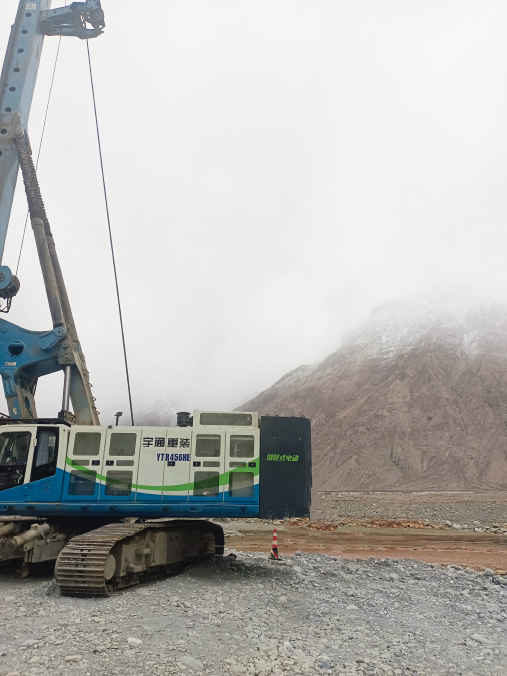

YTR456HE in Xinjiang Province

  • Compared with XX485H at the same job site, the efficiency is almost the same, and the energy consumption cost of operation in the grid mode is lower by 75%.

YTR456HE in Xinjiang Province

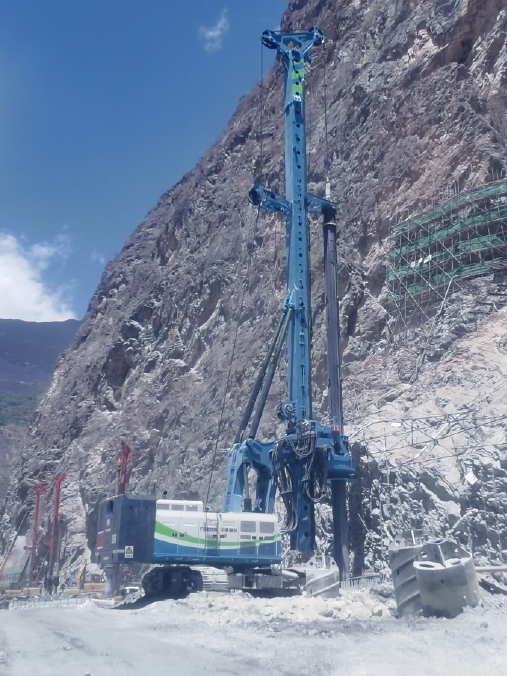

YTR456HE in Tibet Province (Classic case of Energy-saving &Income Increasing for drilling 100 Mpa hard pile in Pure electric mode)

  • YTR456HE performance is much better than other competitors, the energy cost of operation in grid mode is lower by 87%. Income due to fuel saving for each pile is 30,000 Yuan. lt averagely saves 1,500,000.00 per year.

YTR456HE in Tibet Province (Classic case of Energy-saving &Income Increasing for drilling 100 Mpa hard pile in Pure electric mode)

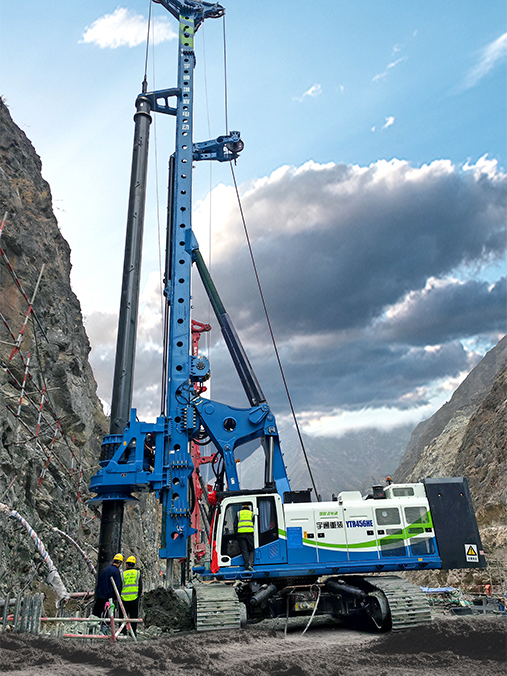

YTR456HE in Suining city Sichuan province(Efficient, fast, low consumption)

  • Fast pile formation within 1.6 hours, single pile cost savings of 160 Yuan.

YTR456HE in Suining city Sichuan province(Efficient, fast, low consumption)
