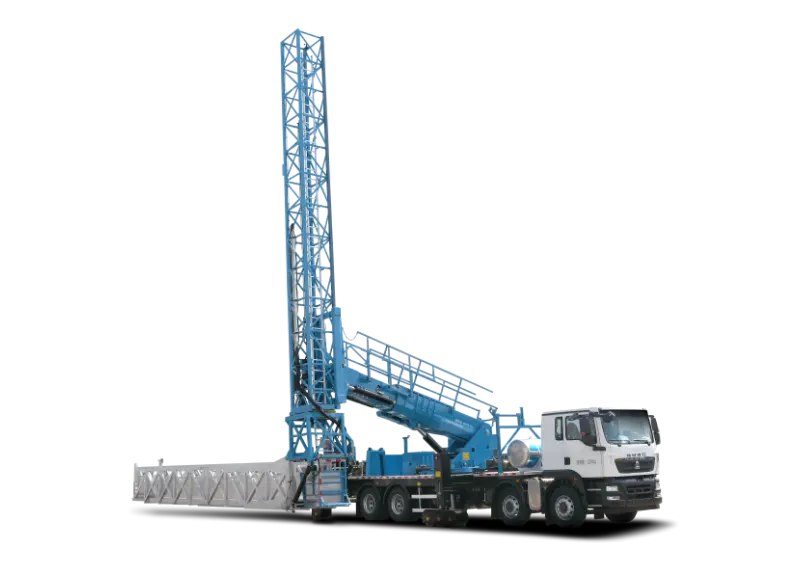

Bridge inspection truck with 4 Axles
- Bigger overbridging & crossing range, more powerful, more stable, safer
Bigger overbridging & crossing range, more powerful, more stable, safer
Among the same level bridge inspection truck, Yutong has a strong comprehensive overbridging & crossing ability, which perfectly adapts to the requirements of high-speed road bridges, municipal road Bridges, pedestrian crossings, noise barriers and other working conditions.
Yutong Bridge inspection truck adopts transfer box big wheel travelling, the driving force is strong, climbing ability is stronger, walking speed is faster, freely cope with uneven road or expansion joint slip road conditions.
Yutong Bridge inspection truck is equipped with extension leg of patent technology (patent No. ZL201921971343.7), the chassis weight participates in the vehicle counter weight, which is more stable and safer.
Yutong Bridge inspection truck is equipped with abundant safety devices: anemometer, double linkage braking, tipping alarm and other safety configurations, making construction safe and worry-free.
Technical Specifications
-
4 Axle 24m truss bridge inspection truck (2 Section Platform)
-

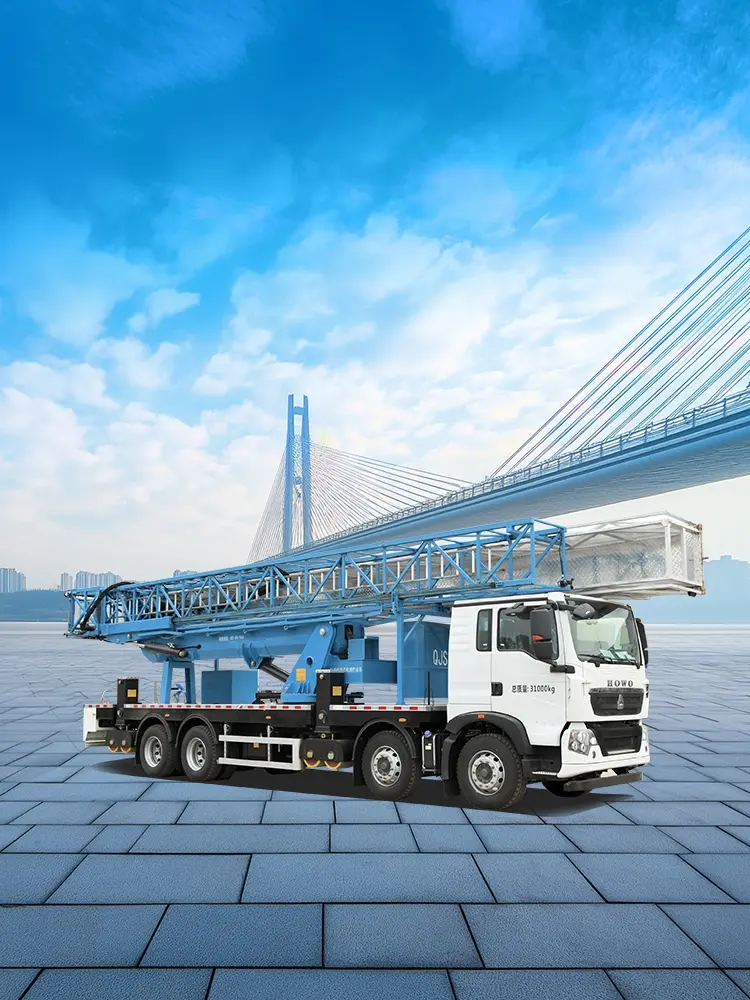

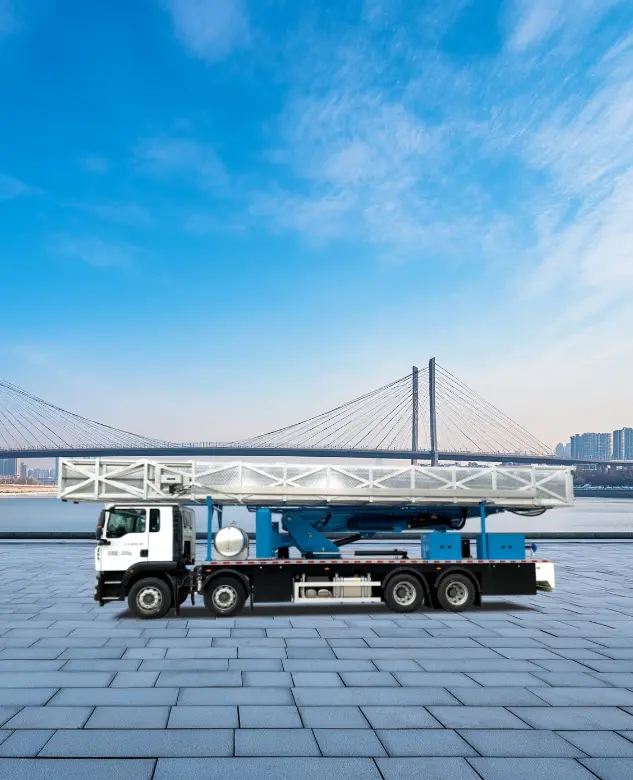

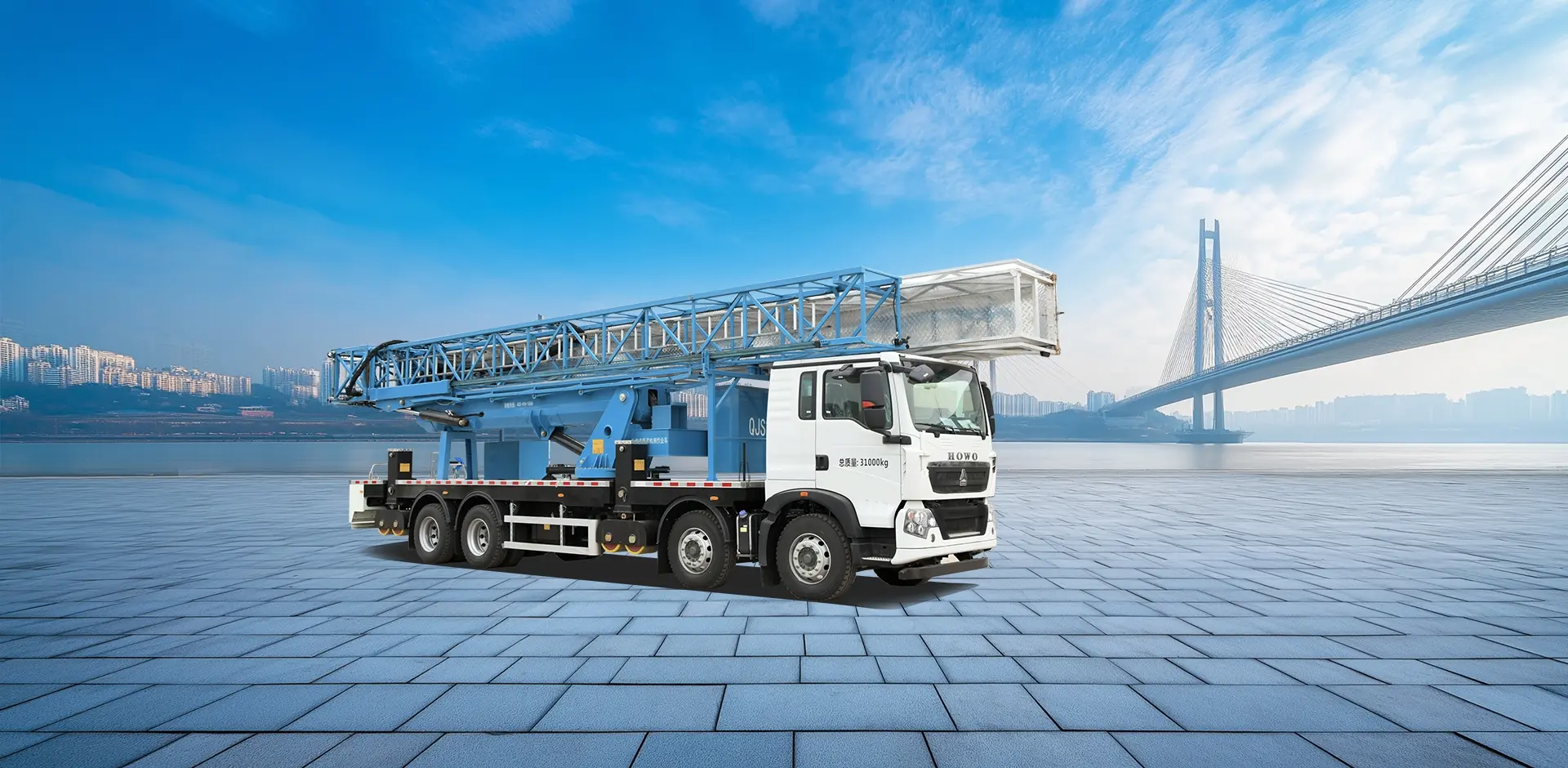

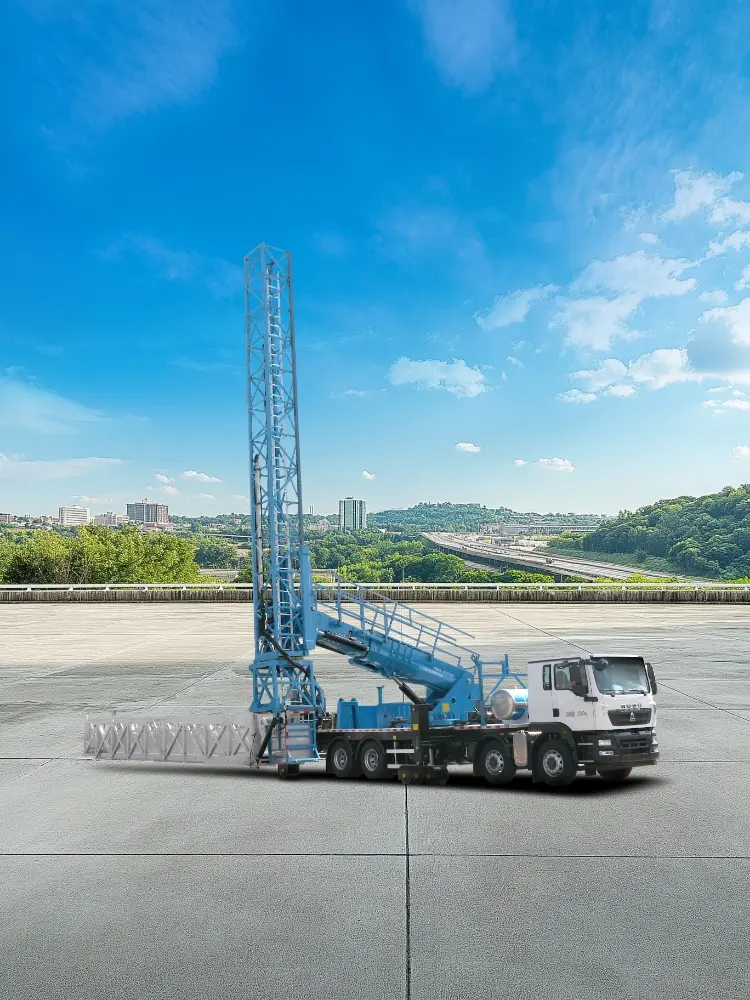

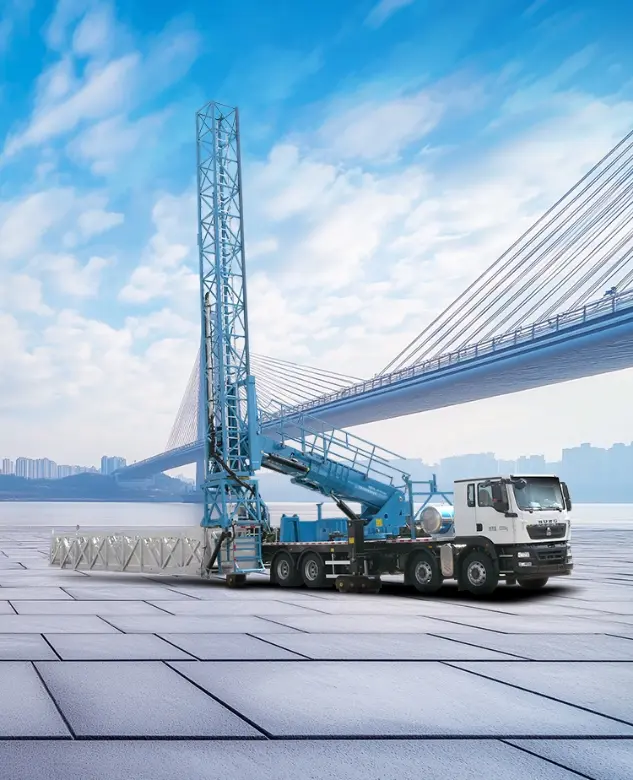

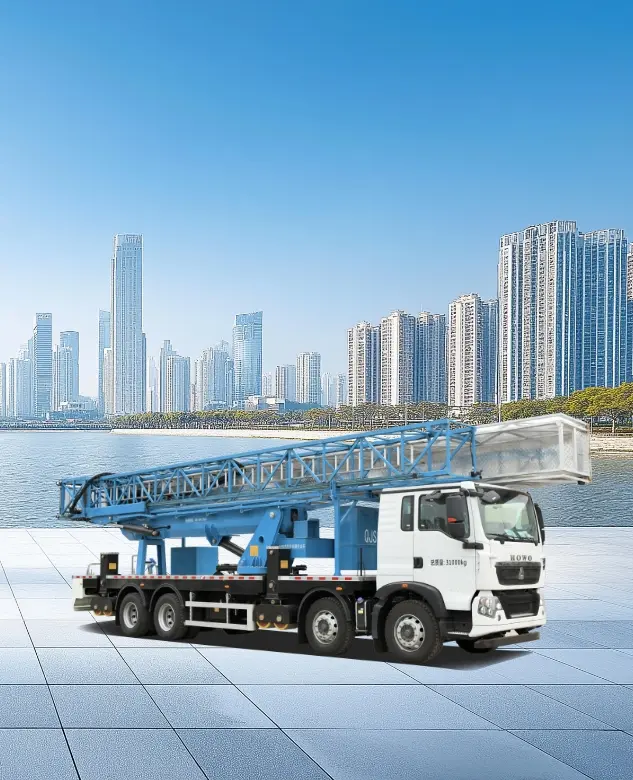

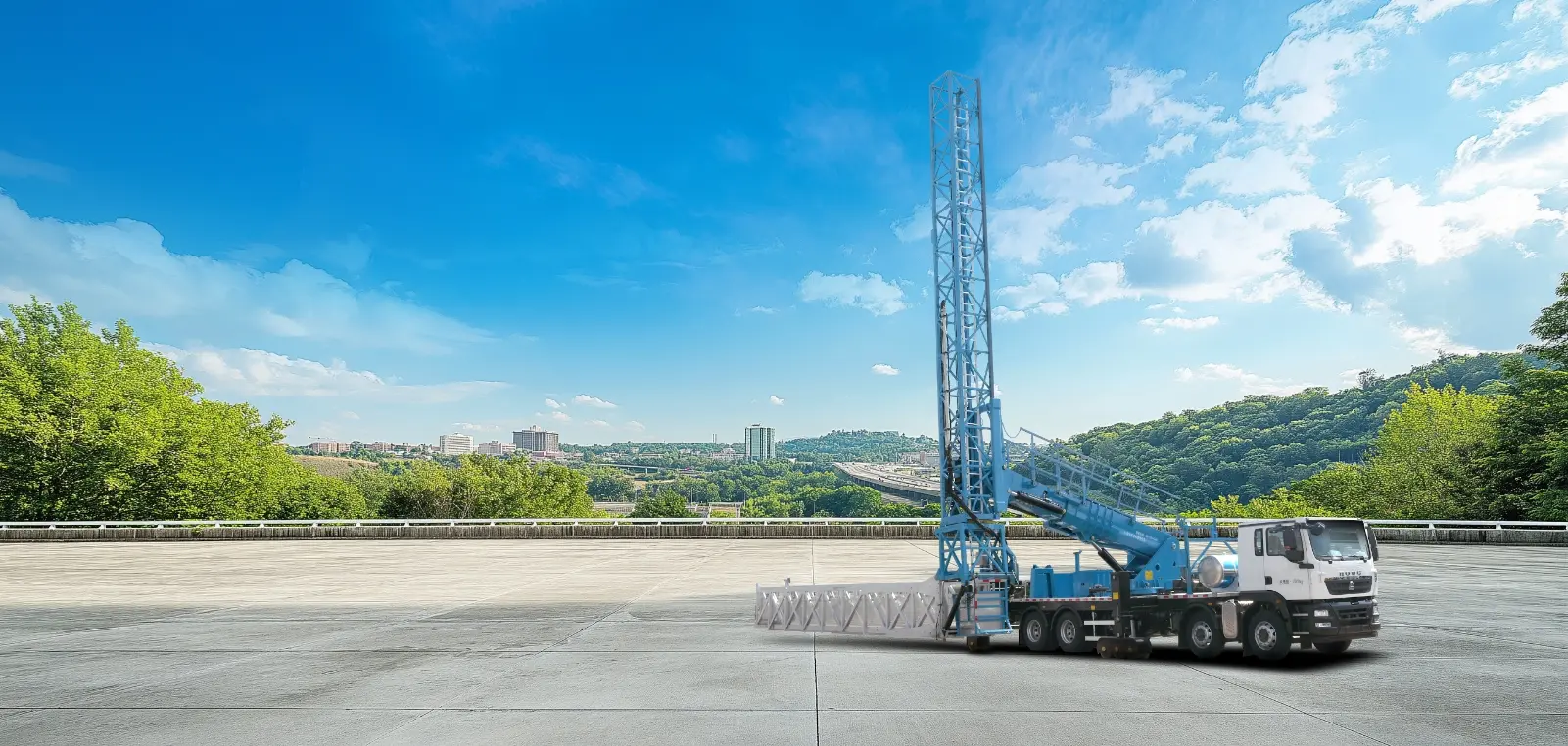

4 Axle 26m truss bridge inspection truck (3 Section Platform)
-
4 Axle 24/26m truss bridge inspection truck
-
-
Total weight(kg)32000
-
Max. load on platform front end(kg)400 (300 when main boom fully extend)
-
Max. load on platform(kg)800 (600 when main boom fully extend)
-
Max. crossing height(m)6.4
-
Max. overbridging of sidewalk(m)5.2
-
Max. bridge lowering depth(m)8.5
-
Horizontal range under bridge(m)0-24
-
Total weight(kg)32000
-
Max. load on platform front end(kg)400
-
Max. load on platform(kg)800
-
Max. crossing height(m)6.4
-
Max. overbridging of sidewalk(m)4.9
-
Max. bridge lowering depth(m)8.5
-
Horizontal range under bridge(m)0-26
-
Total weight(kg)31000
-
Max. load on platform front end(kg)500/400
-
Max. load on platform(kg)1000/800
-
Max. crossing height(m)5.3
-
Max. overbridging of sidewalk(m)4
-
Max. bridge lowering depth(m)8.5
-
Horizontal range under bridge(m)0-24/26
-
